Transmission Position Sensor/Switch
>>
Testing and Inspection
>>
Manual Transmission
Manual Transmission
1.
Disconnect the neutral switch connector.
2.

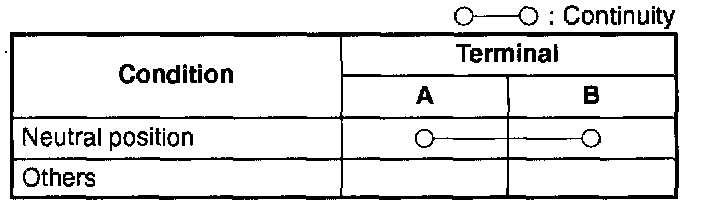

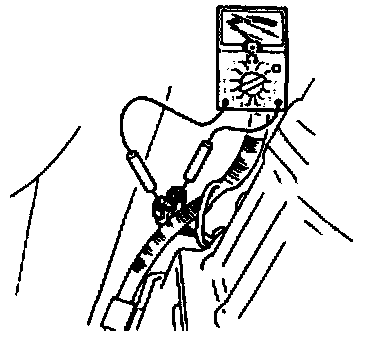

Check for continuity between terminals of the neutral switch by using an ohmmeter.
3.
If not as specified, replace the
clutch switch
.
