Fluid Replacement

1. Remove the filler and drain plugs.

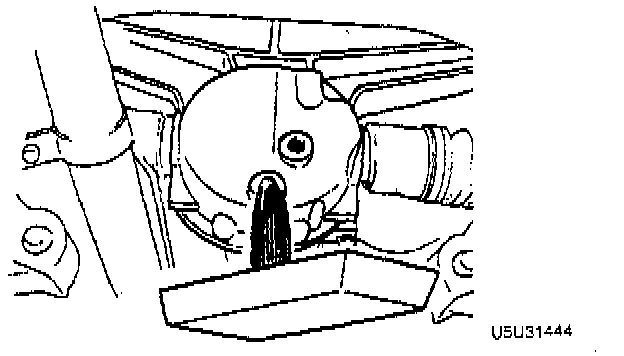

2. Drain the differential oil into a container.
3. Wipe the plugs clean.
4. Install the drain plug and a new washer. Tighten to 39 - 54 Nm (29 - 39 ft. lbs.).

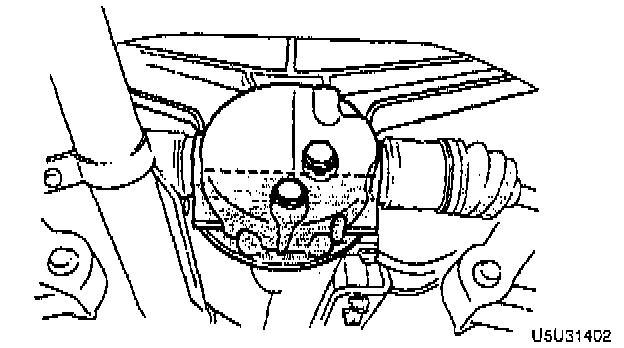

5. Add API service GL-4, GL-5 from the filler plug until the level reaches the bottom of the plug hole.
^ Above -18 °C (0 °F): SAE 90
^ Below -18 °C (0 °F): SAE 80
^ Capacity: 1.00 L (1.06 quarts)





6. Install the filler plug and tighten to 39 - 53 Nm (29 - 39 ft. lbs.).
