Mirrors: Service and Repair






Removal / Inspection
1. Disconnect the negative battery cable.

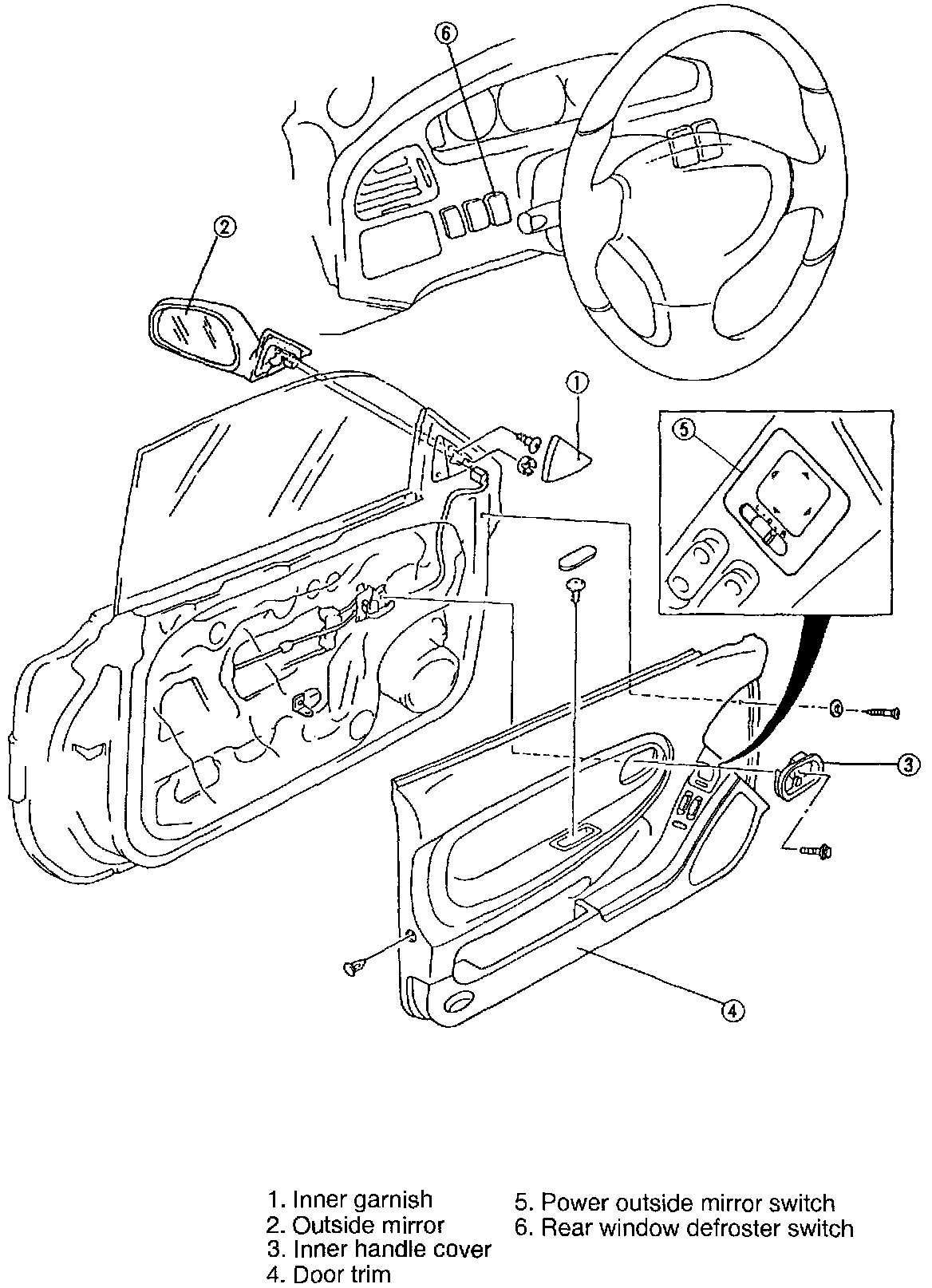

2. Remove in the order shown in the figure. To remove the rear window defroster switch, remove the meter hood.
3. Install in the reverse order of removal.
