Clutch Switch: Testing and Inspection

Inspection
1. Verify that the clutch pedal height and clutch pedal free play are as specified.
2. Disconnect the clutch switch connector.

Terminal Identification:

Reference:

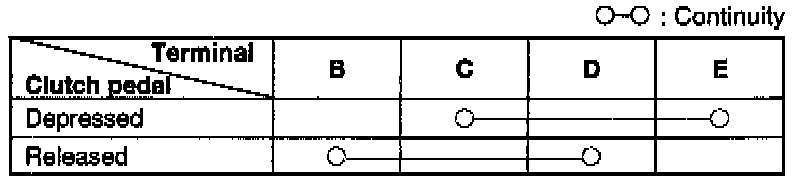

3. Check for continuity between the switch terminals.
4. If not as specified, replace the clutch switch.
