MX-6 L4-2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

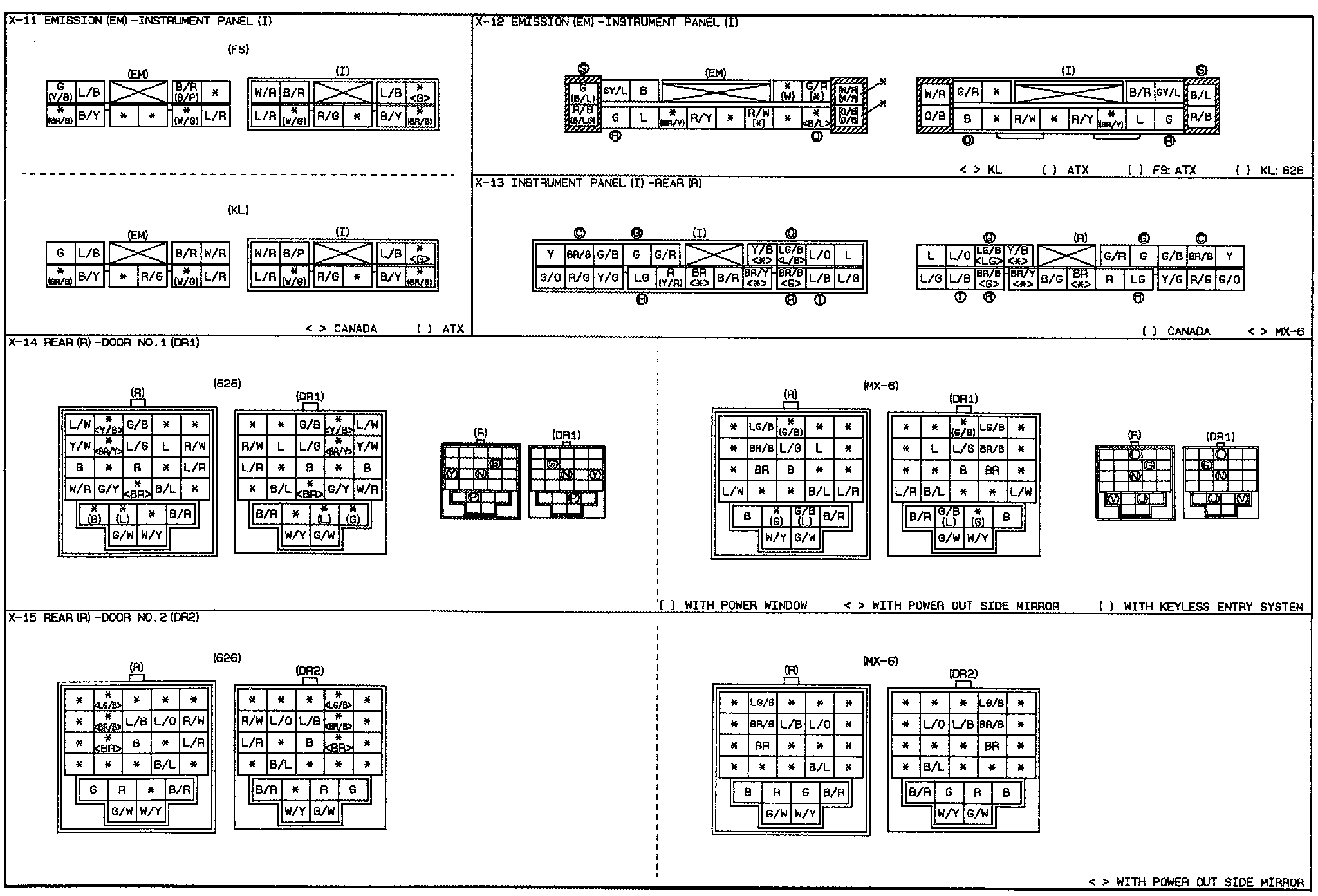

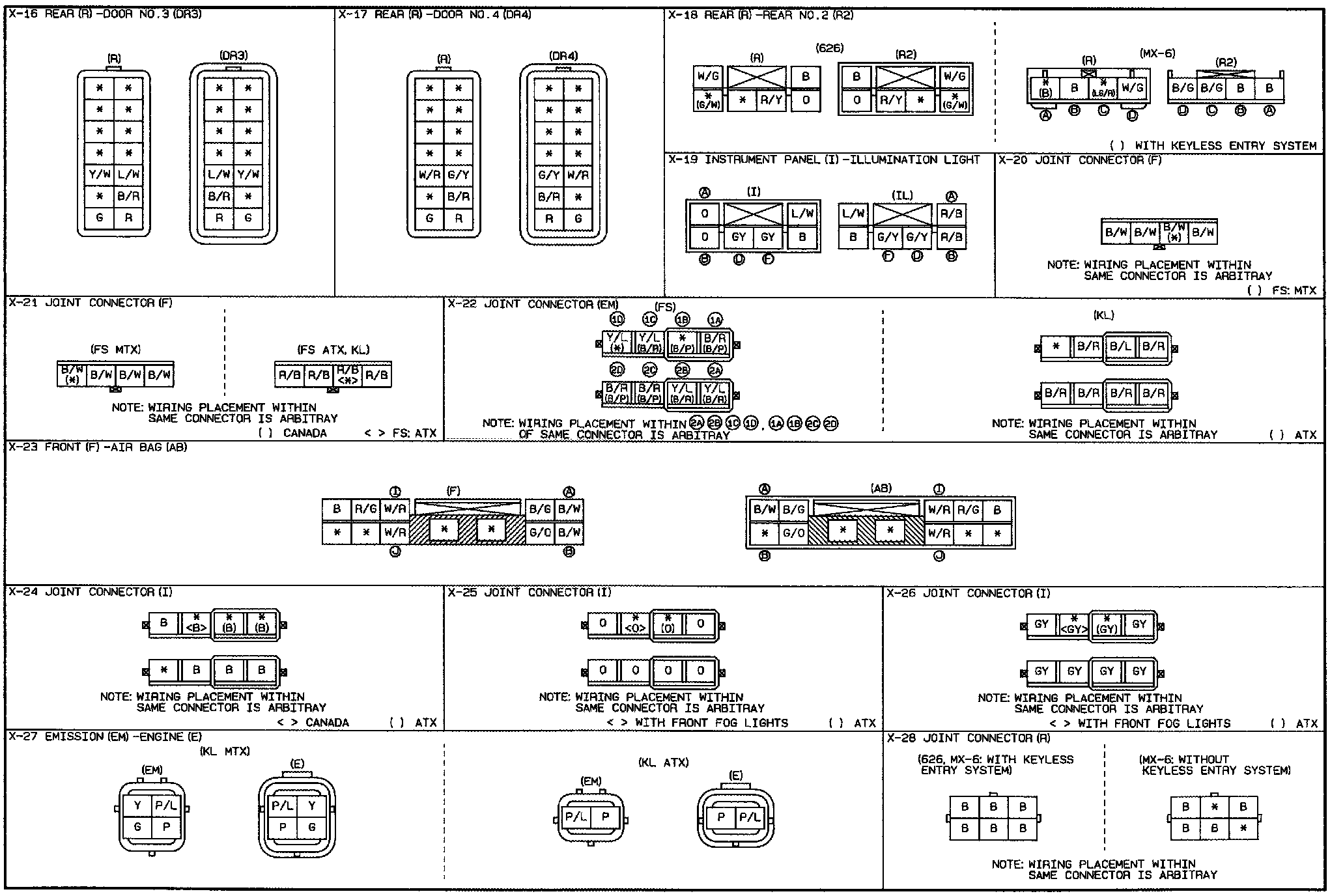

Common Connector List
Common Connector List
Common Connector List:
Common Connector List:
Common Connector List:
