Disassembly and Assembly

Disassembly / Assembly

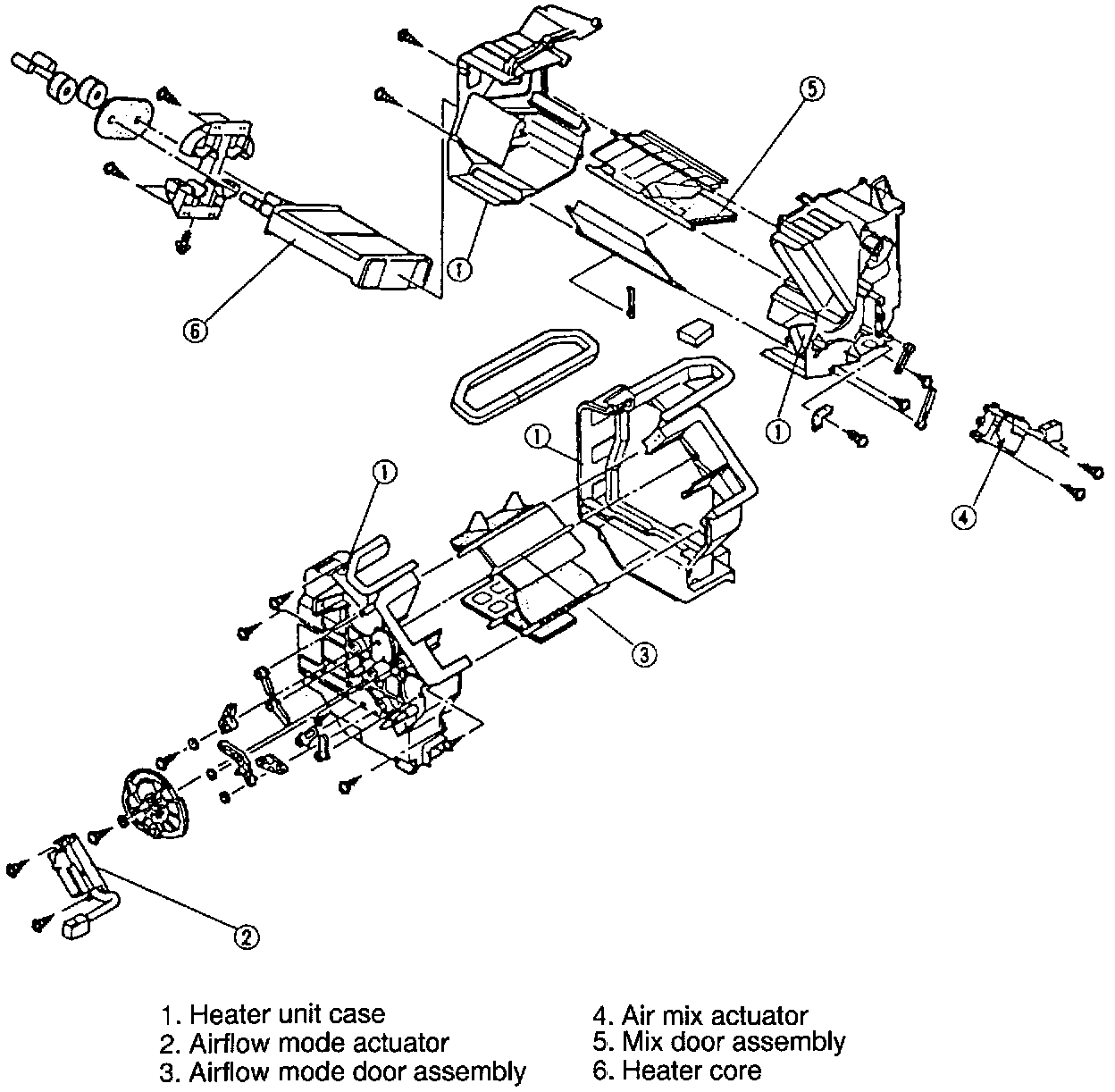

1. Disassemble in the order shown in the figure.
2. Check for the following and repair or replace the heater core as necessary.
1. Cracks
2. Bent fins
3. Distorted and bent inlet
3. Assemble in the reverse order of disassembly.
