Refrigerant Pressure Sensor / Switch: Service and Repair

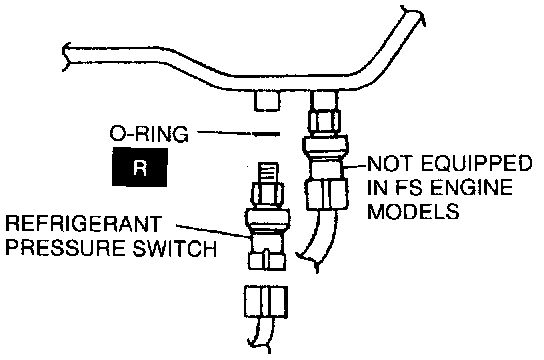

Removal / Installation





1. Discharge the refrigerant from the system.
2. Disconnect the refrigerant pressure switch connector and remove the refrigerant pressure switch.
3. Install in the reverse order of removal. Replace the O-ring.
