Map Light: Service and Repair

Removal / Installation

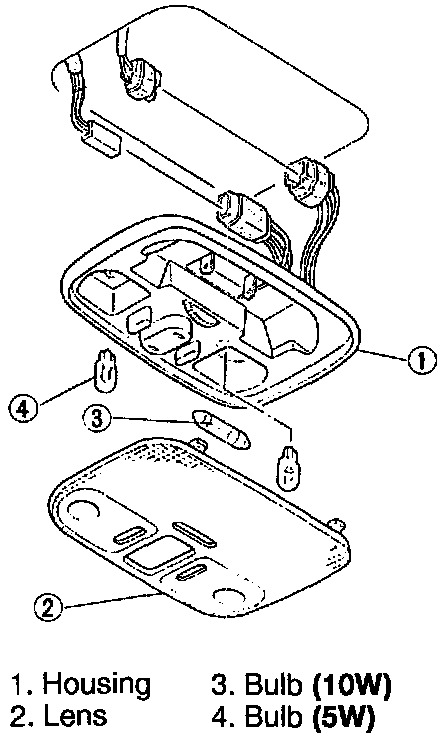

(MX-6) [Without sunroof]
1. Remove in the order shown in the figure.
2. Install in the reverse order of removal.

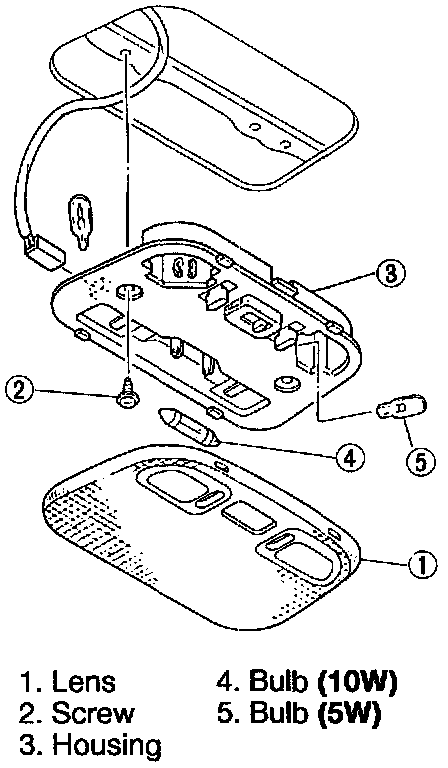

(MX-6) [With sunroof]
1. Remove in the order shown in the figure.
2. Install in the reverse order of removal.
