Power Window Motor: Testing and Inspection








Inspection

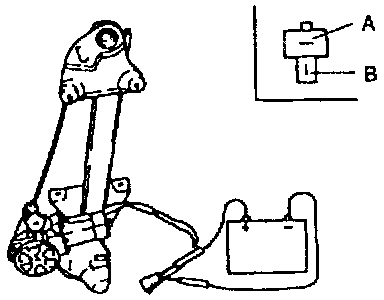

1. Disconnect the regulator connector.

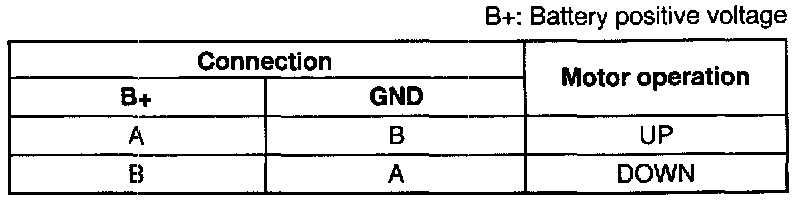

2. Apply battery positive voltage and check the operation of the motor as indicated.
3. If not as specified, replace the power window regulator.
