Home >> Mazda >> 1997 >> MX-6 LS V6-2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Central Control Module >> I-5b

I-5b

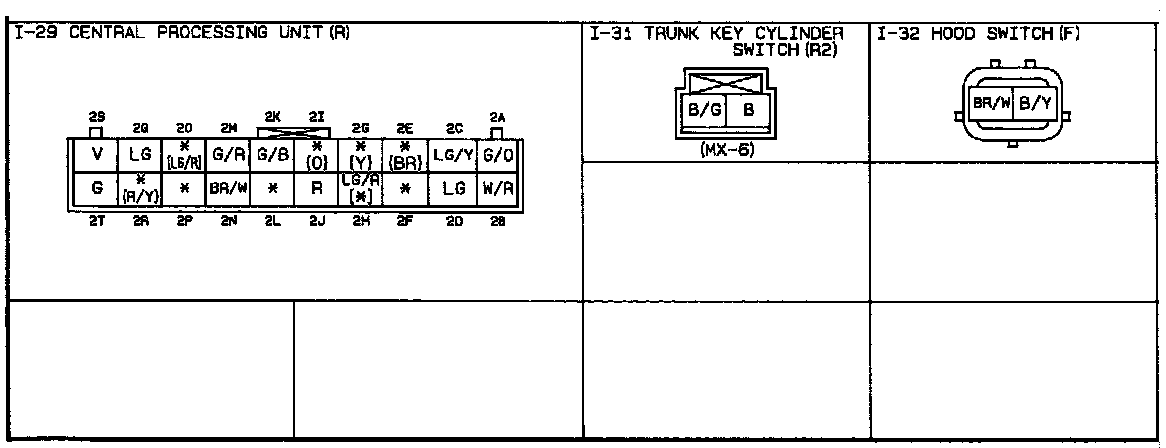

Central Processing Unit (CPU), Theft-Deterrent System- Connectors:
