Blower Motor Resistor: Testing and Inspection

Resistor

Blower Motor Resistor:

1. Remove the glove compartment.
2. Disconnect the resistor connector.

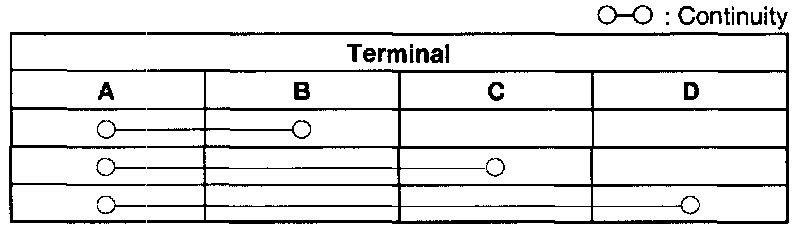

Resistor Continuity:

3. Check for continuity between the resistor terminals.
4. If not as specified, replace the resistor.
