Cruise Control Switch

WARNING: Handling the air bag module improperly can accidently deploy the air bag, which may seriously injure you.

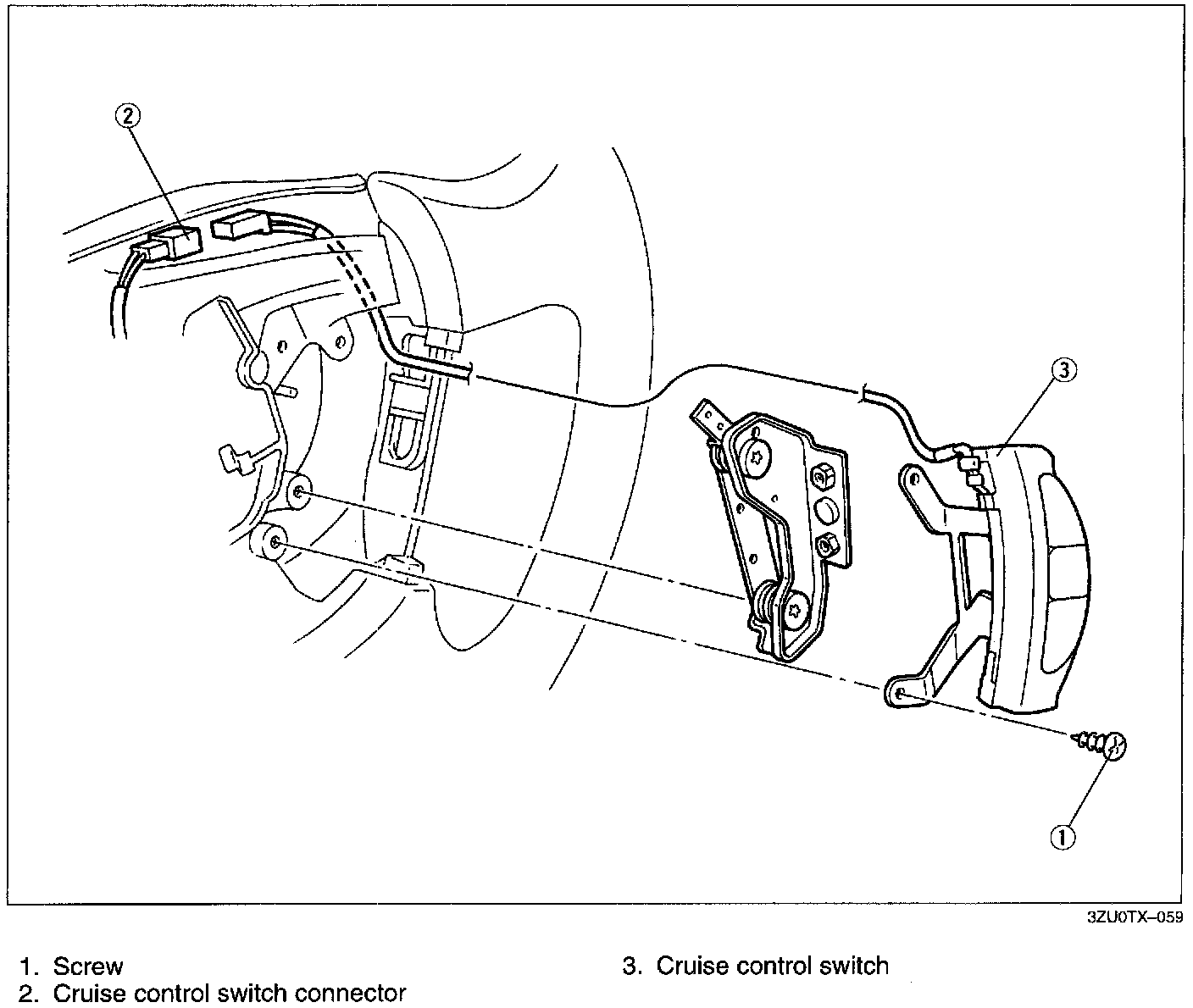

Removal / Installation
1. Remove the driver-side air bag module.
2. Remove in the order shown in the figure.
3. Install in the reverse order of removal.

Inspection

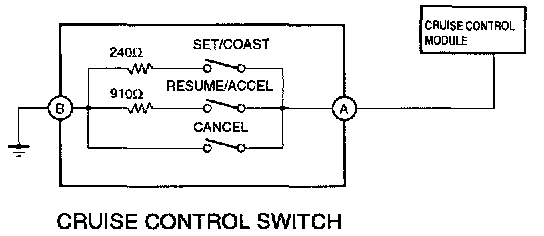

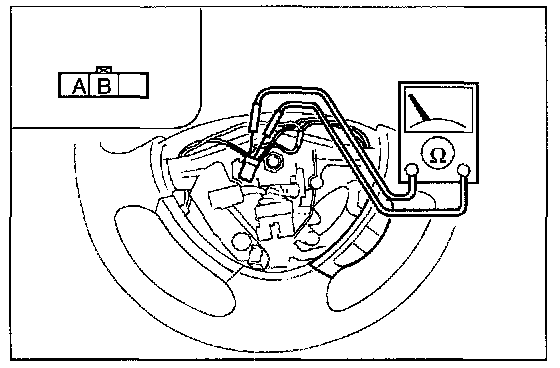

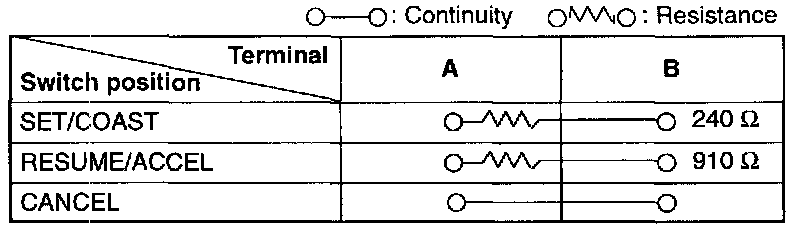

1. Check for continuity between the cruise control switch terminals.




2. If not as specified, replace the cruise control switch.
