Cruise Control Servo: Testing and Inspection

Inspection

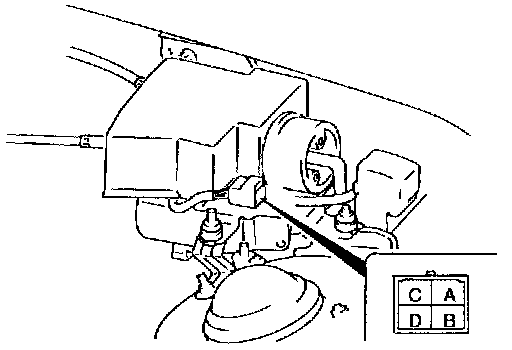

1. Disconnect the cruise actuator connector.

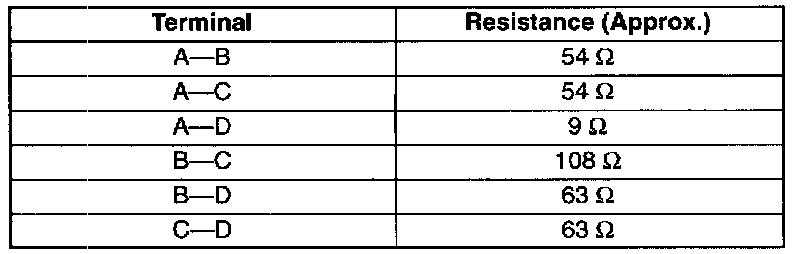

2. Measure the resistance between the cruise actuator terminals.

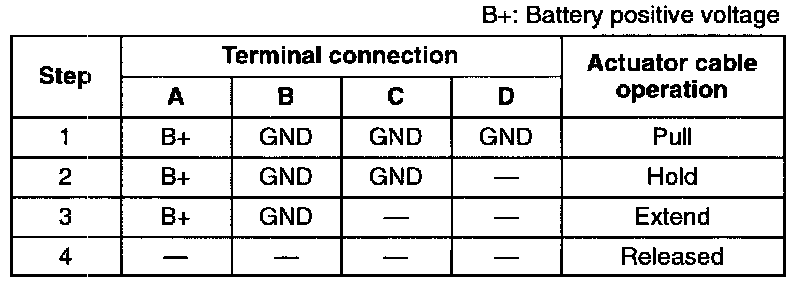

3. Connect the battery positive voltage and verify the operation of the actuator cable as indicated below.
4. If not as specified, replace the cruise actuator.
