Cruise Control Servo: Service and Repair

1. Disconnect the negative battery cable.

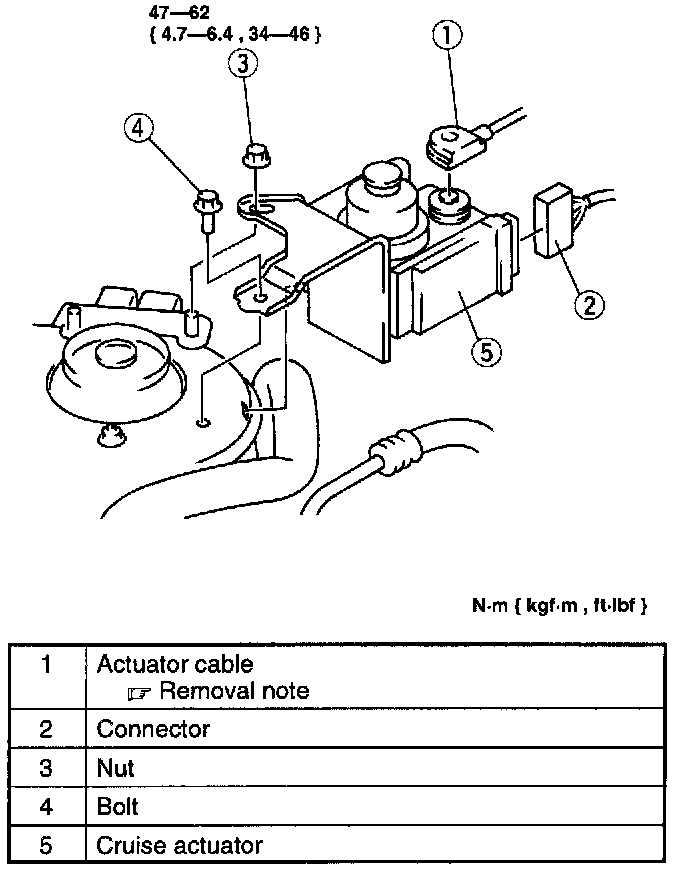

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Connect the negative battery cable.
5. Adjust the actuator cable. Adjustments

Actuator cable removal note

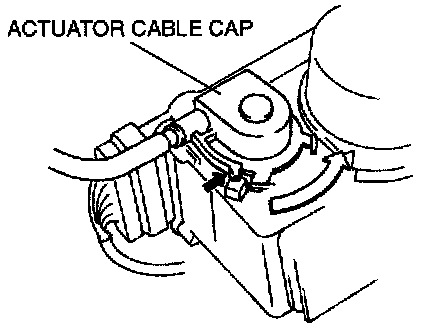

1. Remove the actuator cable cap from the cruise actuator by pushing the actuator cable cap tab and rotating the actuator cable cap counterclockwise.

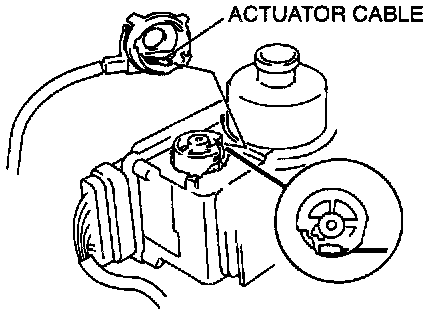

2. Remove the actuator cable from the cruise actuator.
