Operation CHARM: Car repair manuals for everyone.
Home >> Mazda >> 1997 >> Protege ES L4-1839cc 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Valve Body, A/T >> Premain Control Valve Body

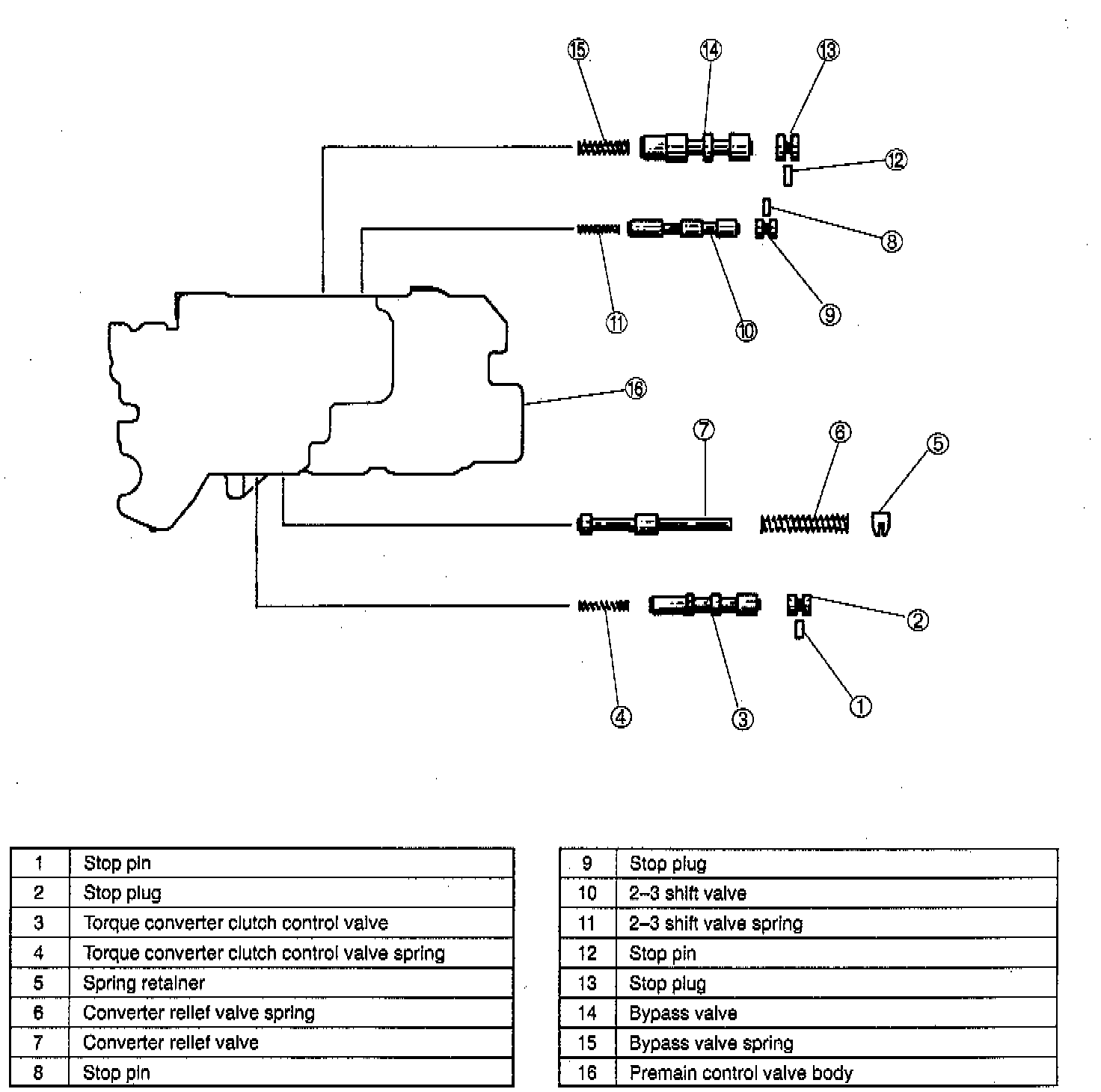

Premain Control Valve Body
