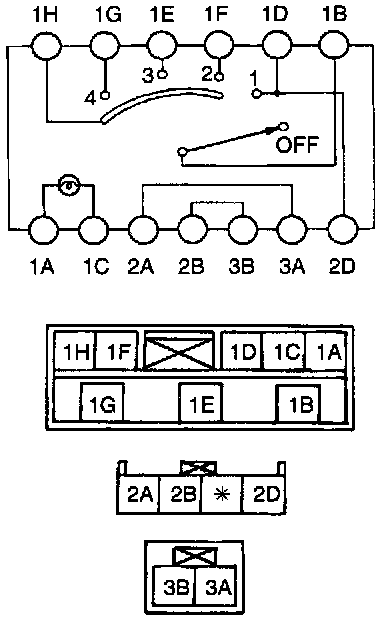

Fan switch
1. Remove the heater control unit.

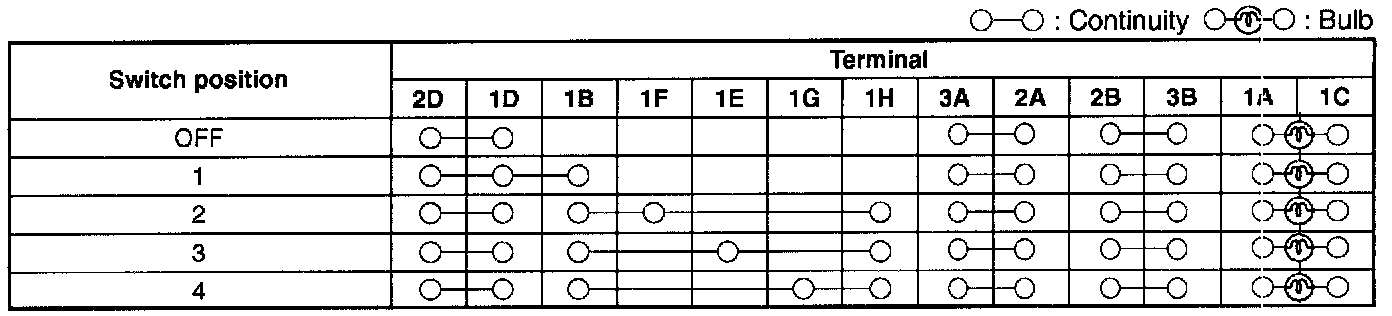

2. Check for continuity between the fan switch terminals by using an ohmmeter.
3. If not as specified, replace the fan switch.

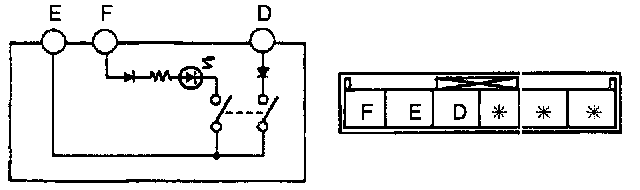

A/C switch
1. Remove the A/C switch.

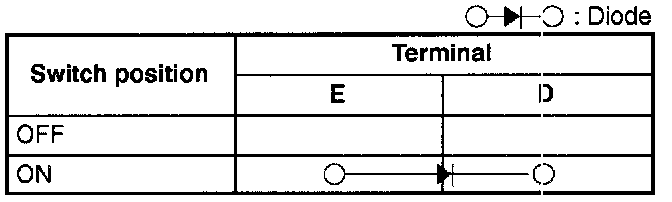

2. Check for continuity between the A/C switch terminals by using an ohmmeter







3. Turn the A/C switch on.
4. Connect battery positive voltage to terminal F and ground to terminal D.
5. Verify that the LED illuminates.
6. If not as specified, replace the A/C switch.
