Receiver/Drier Removal/Installation

1. Discharge the refrigerant from the system.
2. Disconnect the negative battery cable.
3. Remove the undercover and splash shield (LH).
4. Remove the mud guard (LH).

CAUTION
- If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.

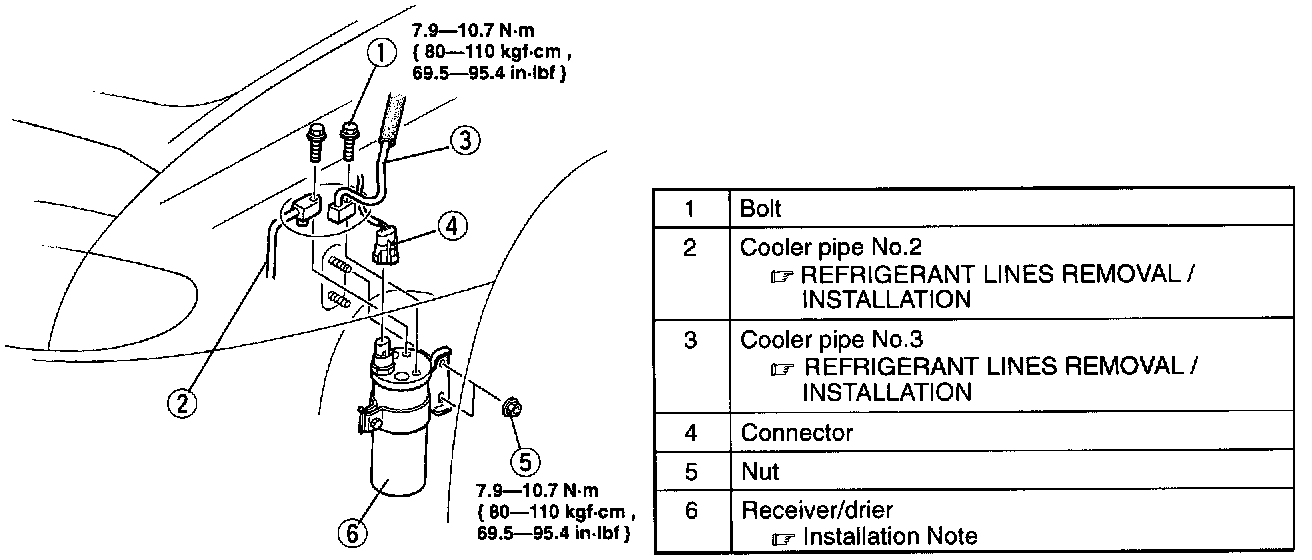

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
7. Install the mud guard (LH).
8. Install the undercover and splash shield (LH).
9. Connect the negative battery cable.
10. Charge the system and test its performance.

Receiver/Drier Installation Note
- When installing a new receiver/drier, add SP10 compressor oil through the high-pressure side of the A/C compressor.

Supplemental amount
10 ml (10 cc, 0.3 fl oz)
