Valve Clearance

DIMENSIONS

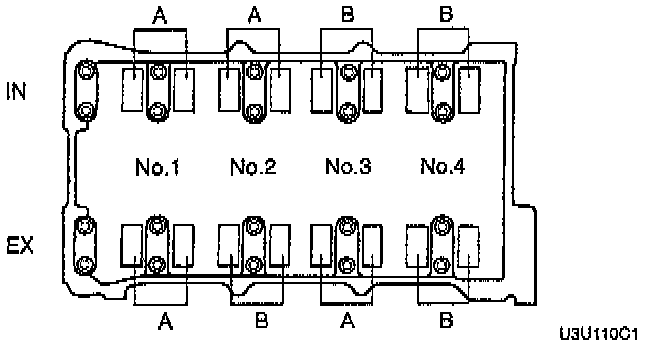

Valve Clearance @ A

Standard [1]
^ Intake: 0.18-0.24 mm (0.008-0.009 inch).
^ Exhaust: 0.28-0.34 mm (0.012-0.013 inch).

Valve Clearance @ B

Standard [1]
^ Intake: 0.18-0.24 mm (0.008-0.009 inch).
^ Exhaust: 0.28-0.34 mm (0.012-0.013 inch).

[1] Engine cold.
