Cruise Control Servo Cable: Adjustments

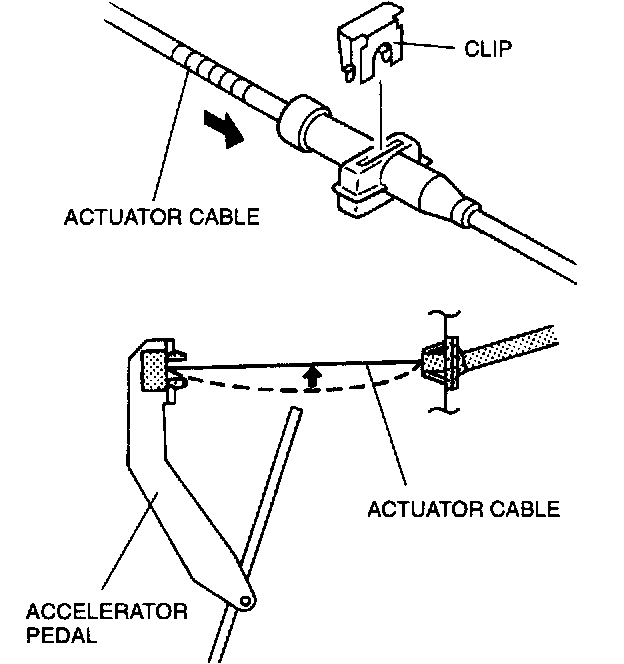

1. Remove the clip.
2. Pull the actuator cable until the throttle lever stands moving to eliminate the actuator cable play.

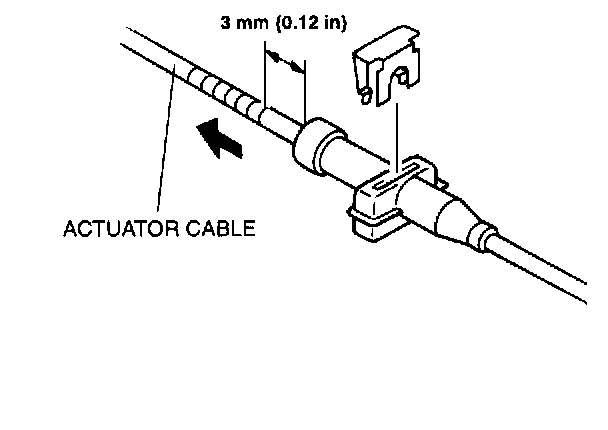

3. Then loosen the actuator cable until an approximately 3 mm (0.12 in) tree play is obtained.
