Front

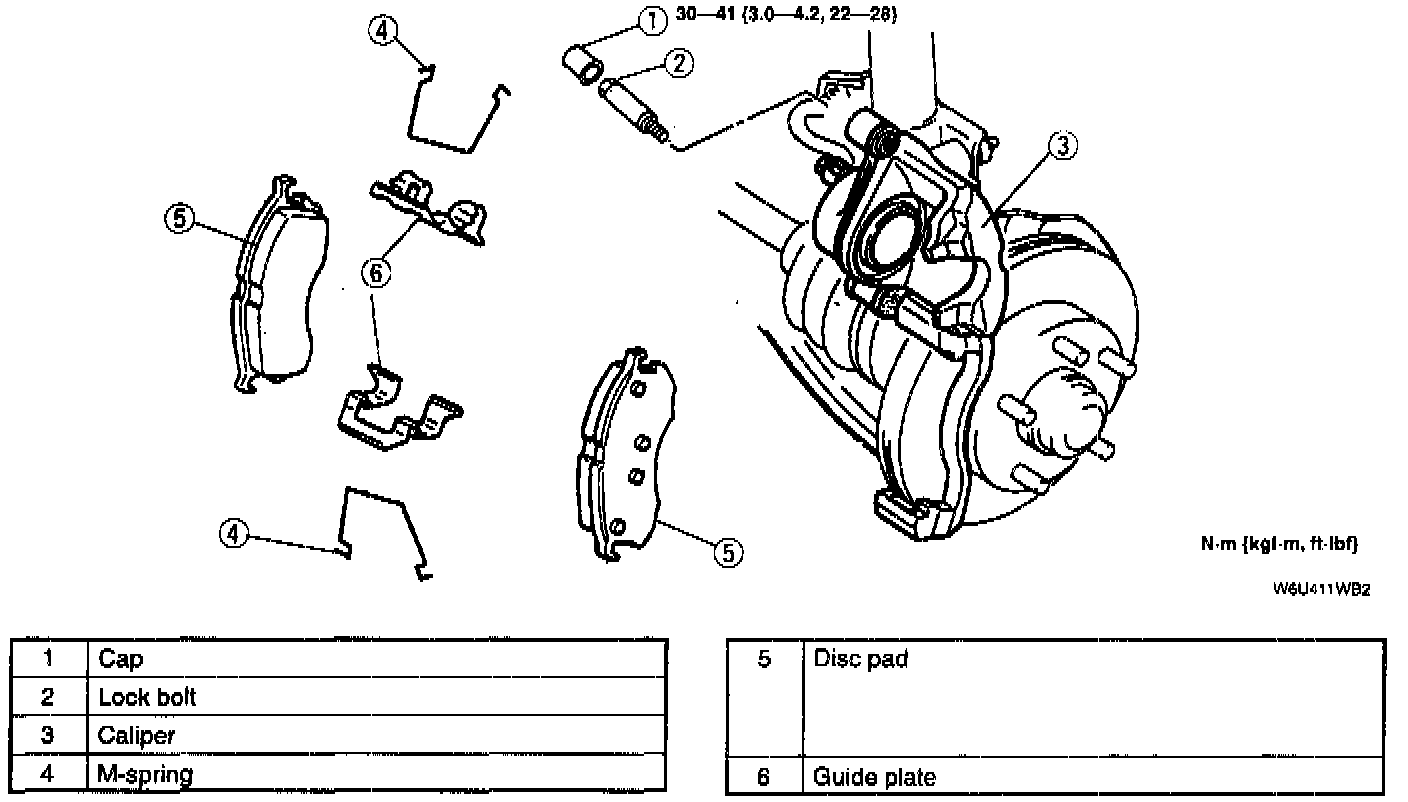

REPLACEMENT
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.





Disc Pad Installation Note
1. Push the piston fully inward by using the Special Service Tool (SST).
2. Install the disc pad.
