Pre-Alignment Inspection

PREINSPECTION
1. Inspect the tire inflations, and adjust to the recommended pressure as necessary.
2. Inspect the front wheel bearing play and correct it if necessary. Refer to Transmission and Drivetrain.
3. Inspect the wheel and tire run-outs.
4. inspect the ball joints and steering linkage for excessive looseness.
5. Shake the vehicle to settle the suspension.
6. The vehicle must be on level ground and unloaded.

NOTE: Unloaded...Fuel tank full; engine coolant and engine ok at specified levels; spare tire, jack and tools in designated position.

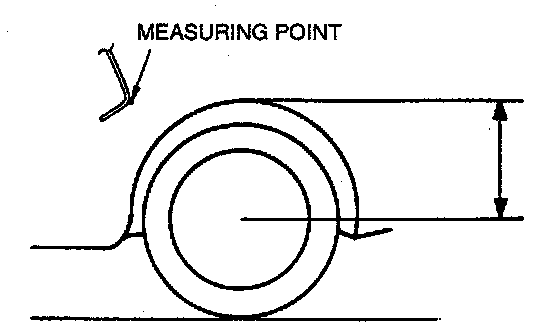

7. Measure the height from the center of the wheel to the fender brim. The difference between the left and right measurement must not exceed 10 mm (0.39 inch).
