Windshield Washer Motor: Service and Repair




1. Disconnect the negative battery cable.
2. Partially peel oft the right side mud guard.
3. Remove the windshield washer tank.

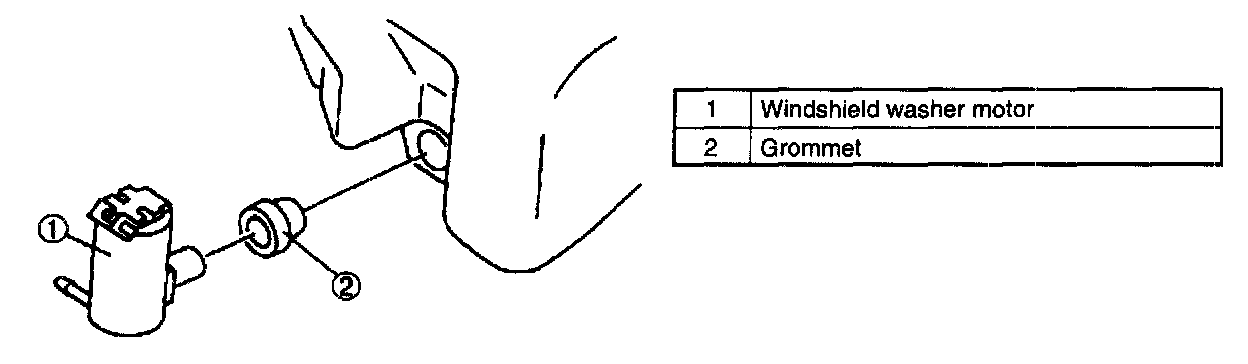

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
