Compressor Clutch: Service and Repair

1. Remove the A/C compressor.

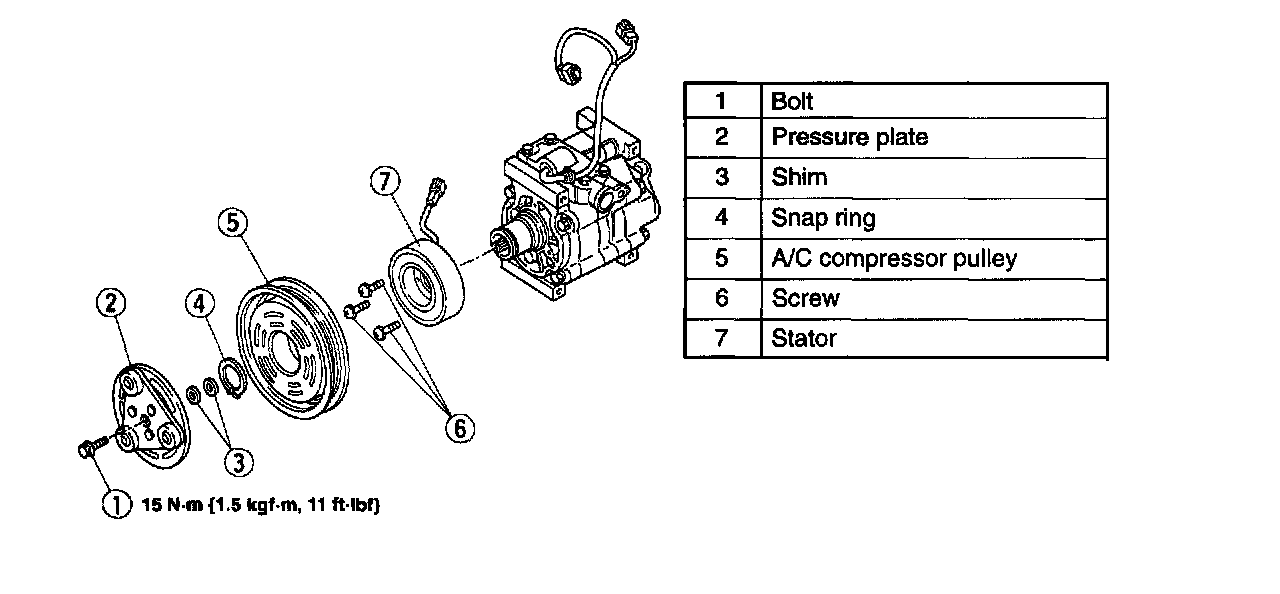

2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.




4. Adjust the magnetic clutch.




Bolt Disassembly Note

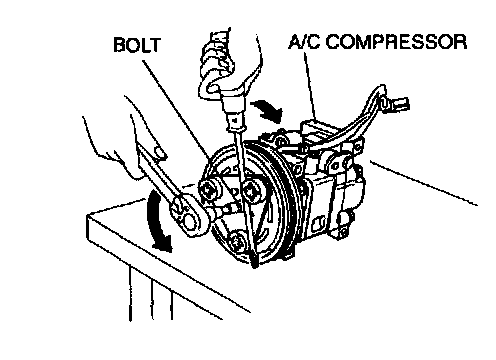

- When removing the bolt, hold the pressure plate in place as shown in the figure.
