Starter Motor: Service and Repair

2.5L DOHC:

2.3L DOHC:

1. Disconnect the negative battery cable.
2. Remove the charge air cooler.

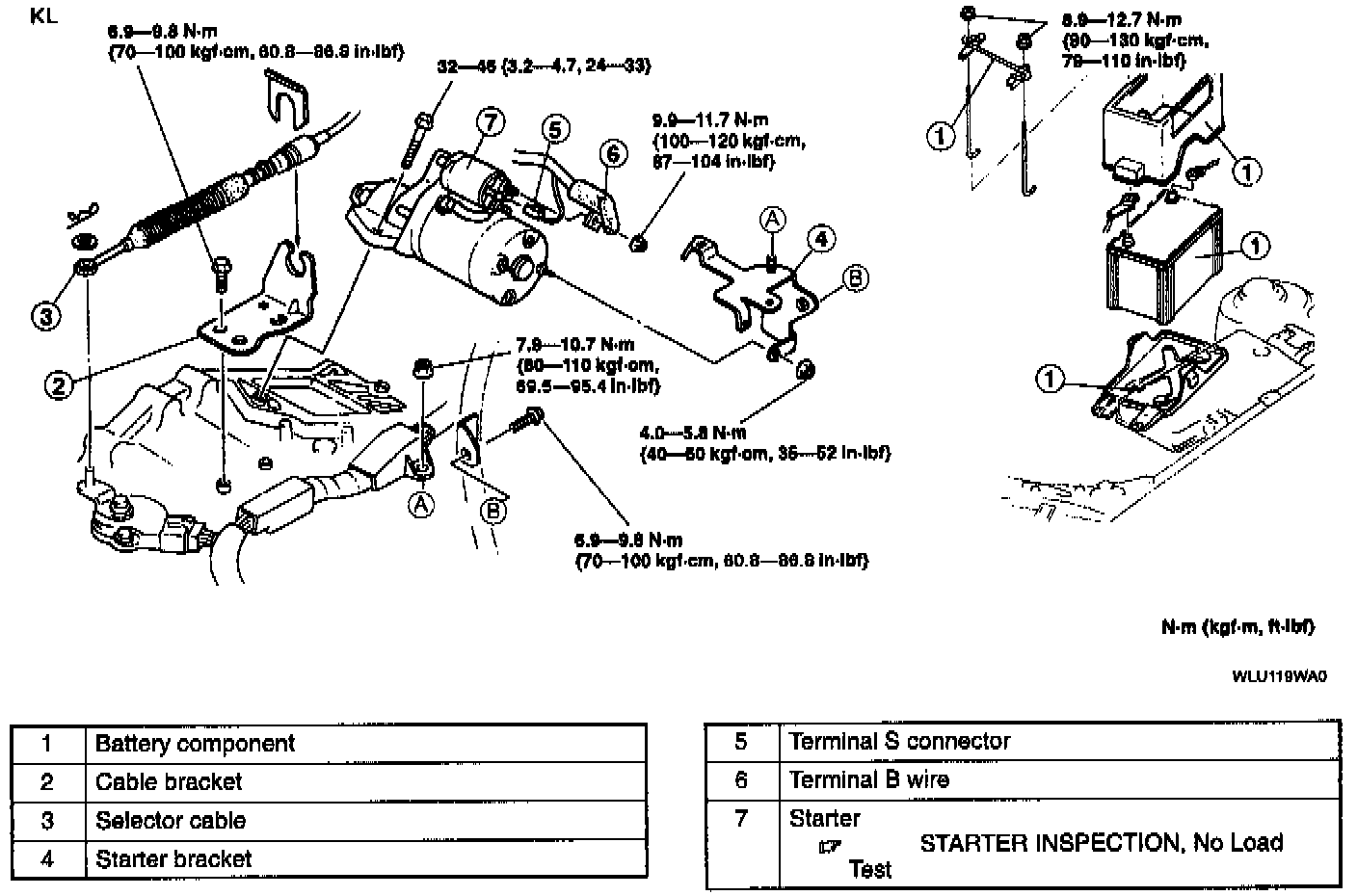

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
