Rear Cross-Member: Service and Repair

REMOVAL/INSTALLATION

CAUTION: Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled by mistake while serviceing the vehicle.

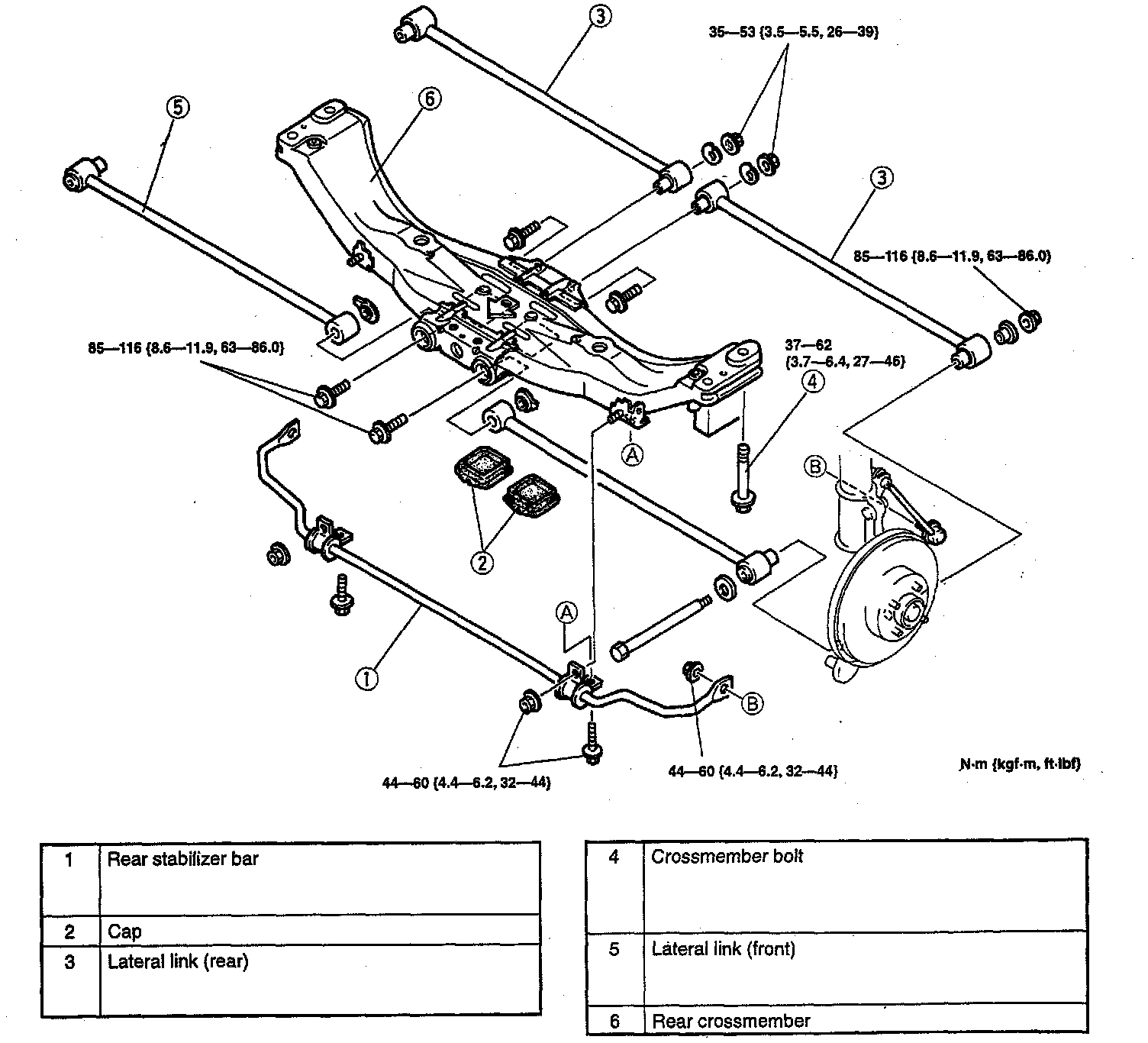

1. Remove in the order indicated in the illustration.
2. Install in the reverse order of removal indicated in the illustration.
3. Adjust the rear wheel alignment.
