Front

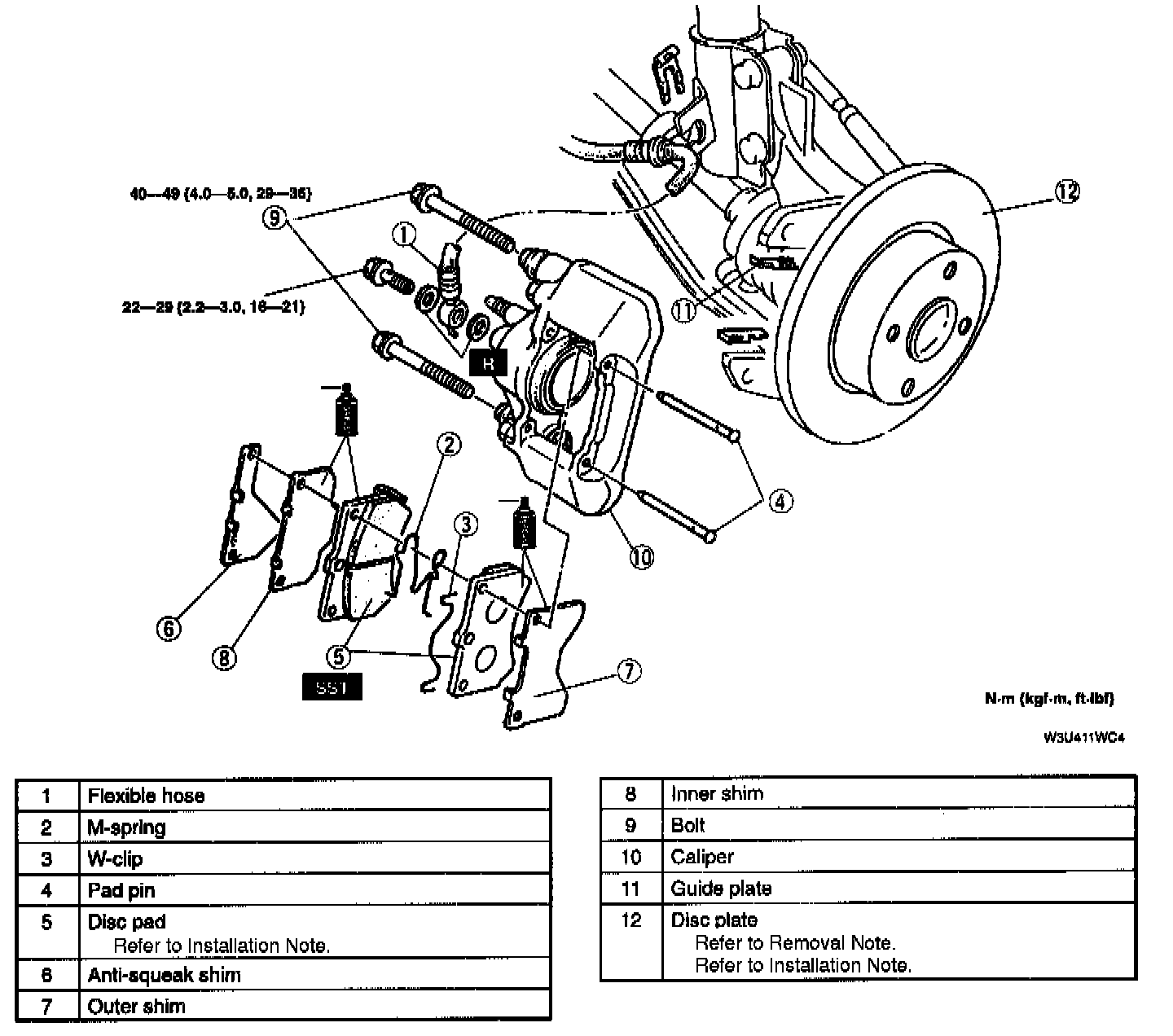

REMOVAL AND INSTALLATION





1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, depress the pedal several times. Then rotate the wheel by hand, and verify that the brakes do not drag.


Disc Plate Removal Note





Mark the wheel hub bolt and disc plate before removal for reference during installation.


Disc Pad Installation Note

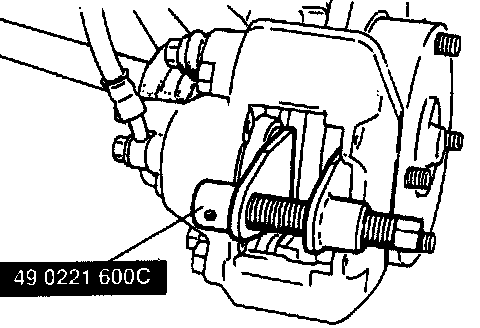

1. Push the piston fully inward by using the Special Service Tool (SST).

2. Install the disc pad.


Disc Plate Installation Note

1. Remove any rust or grime on the contact face of the disc plate and wheel hub.

2. Install the disc plate and align the marks made before removal.
