Disassembly and Assembly
Disassembly and Assembly
1.
Remove the heater control unit.
2.

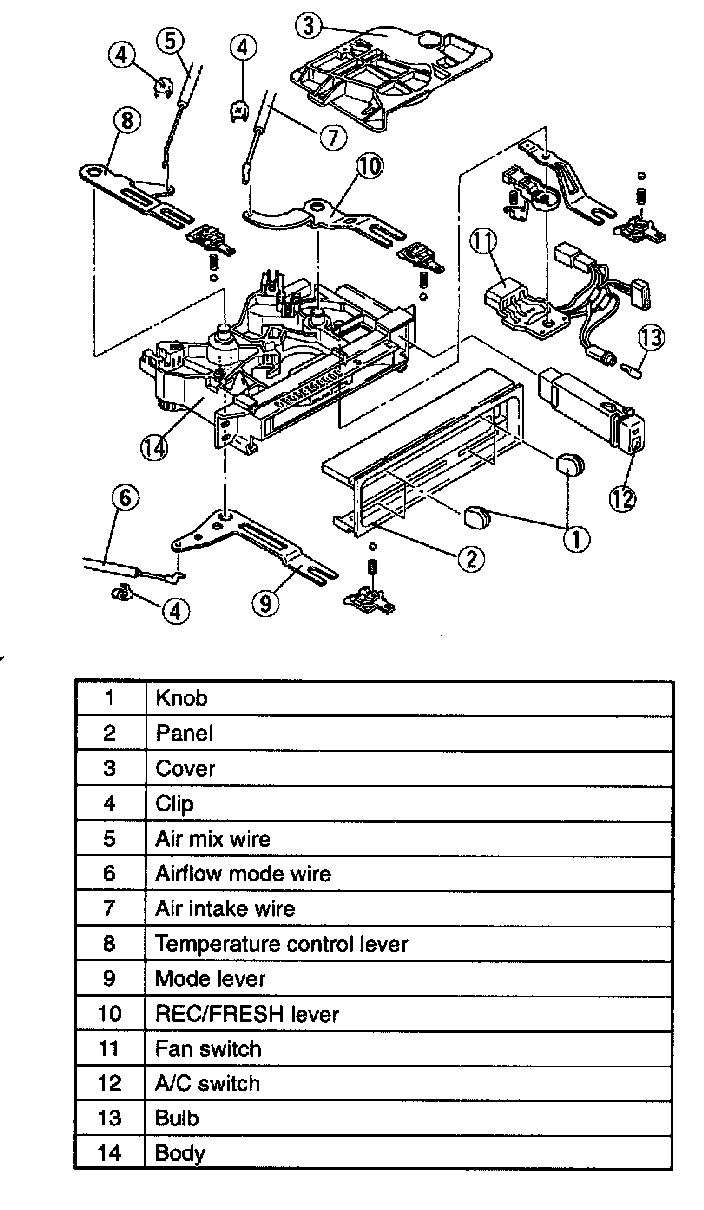

Disassemble in the order indicated in the table.
3.
Assemble in the reverse order of disassembly.
Wire Type
Logic Type
