Removal and Installation

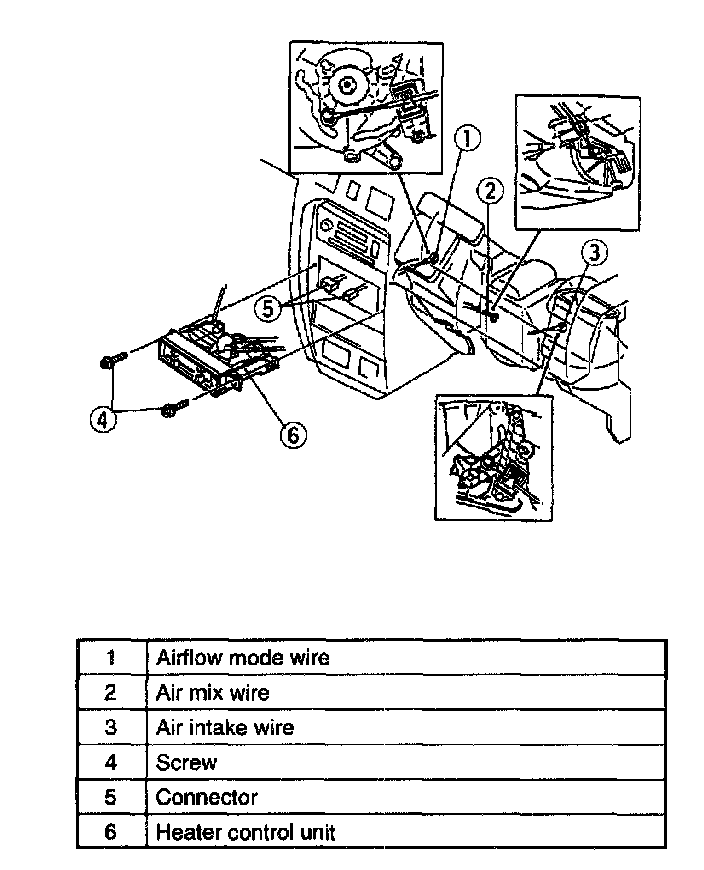

Wire Type




1. Disconnect the negative battery cable.
2. Remove the center panel, side panel, glove compartment, and glove compartment cover.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Adjust the air intake, air mix, and airflow mode wires.

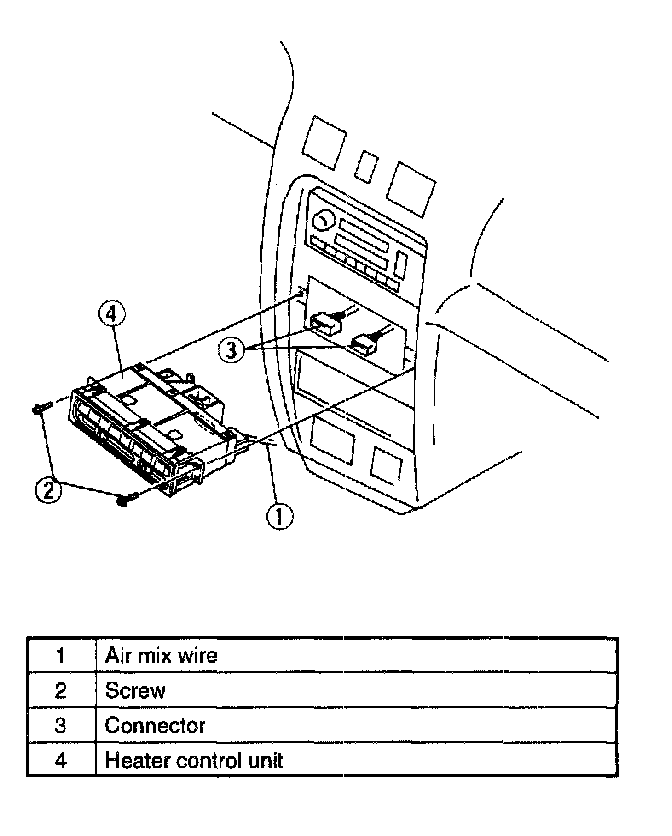

Logic Type




1. Disconnect the negative battery cable.
2. Remove the center panel.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Adjust the air mix wire.
