4 Combustion Observed but Engine Will Not Start

4. COMBUSTION OBSERVED BUT ENGINE WILL NOT START

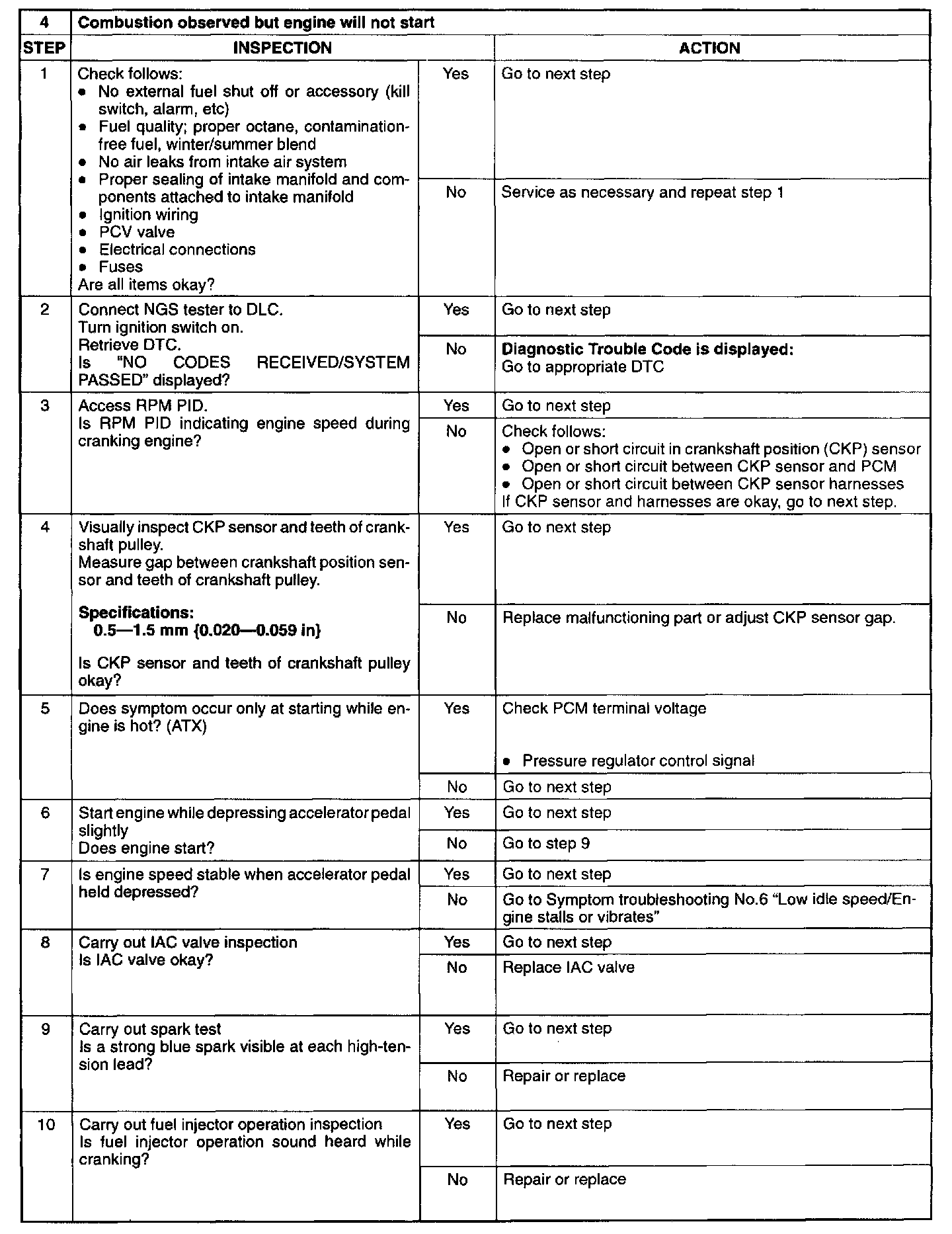

PART 1 OF 2

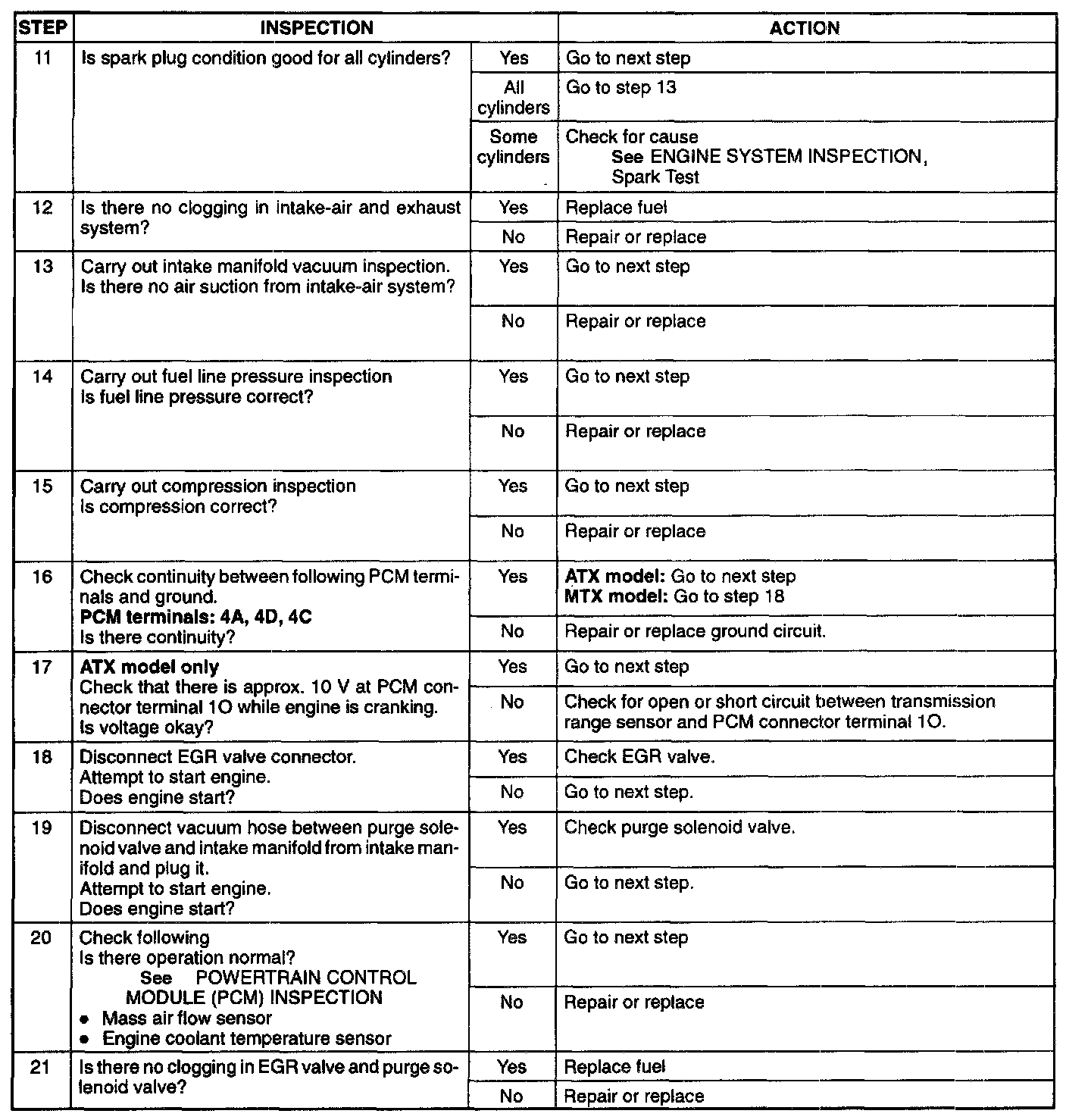

PART 2 OF 2
