Starter Motor: Service and Repair
1.
Disconnect the negative
battery cable
.
2.
Remove the air cleaner.
3.
Remove the three way catalytic converter.
4.

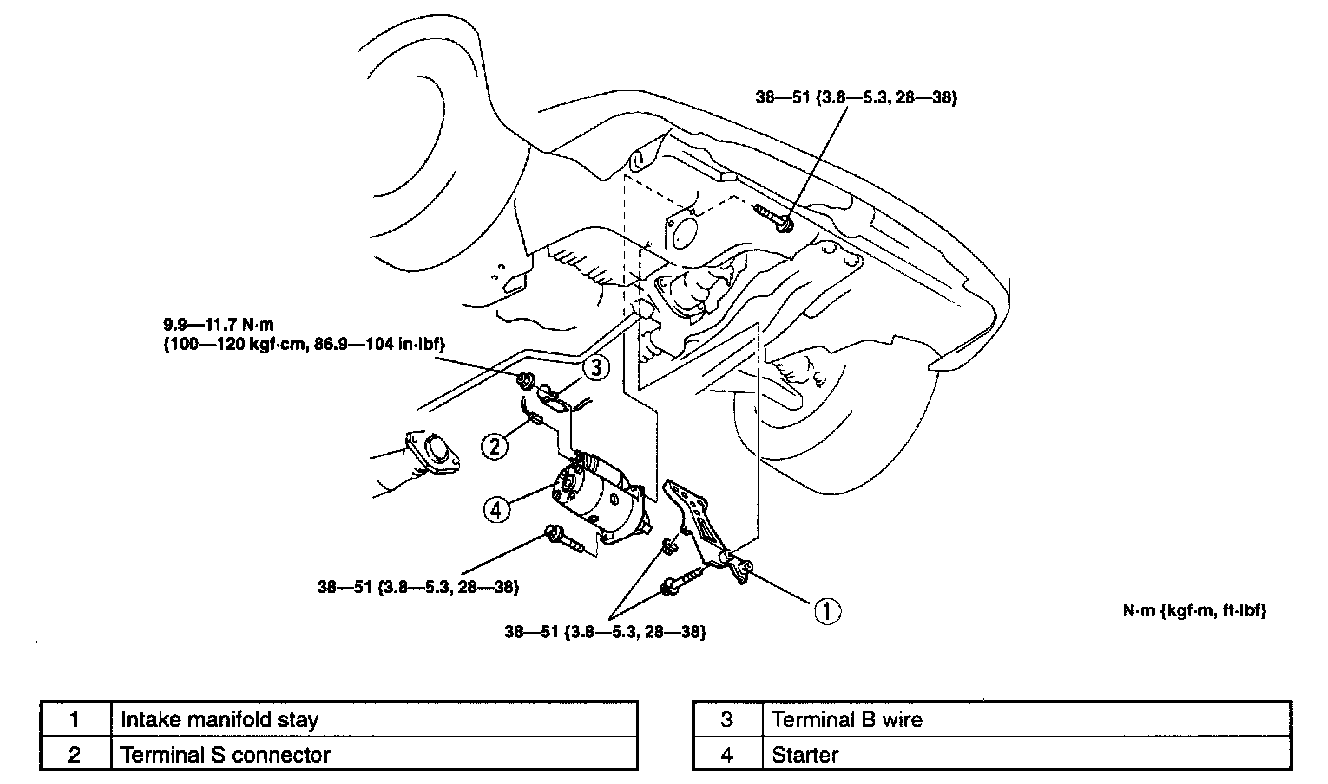

Remove in the order indicated in the table.
5.
Install in the reverse order of removal.
