Air Register: Service and Repair

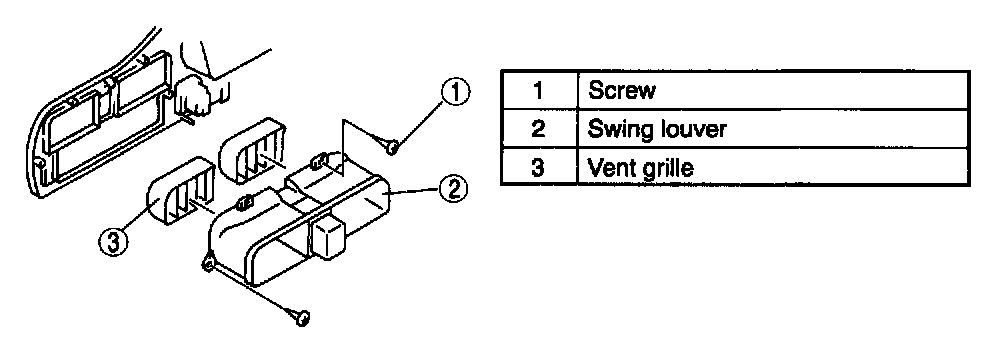

SWING LOUVER REMOVAL/INSTALLATION




1. Disconnect the negative battery cable.
2. Remove the meter hood.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
