Compressor Clutch: Testing and Inspection

MAGNETIC CLUTCH INSPECTION

1. Disconnect the magnetic clutch connector.

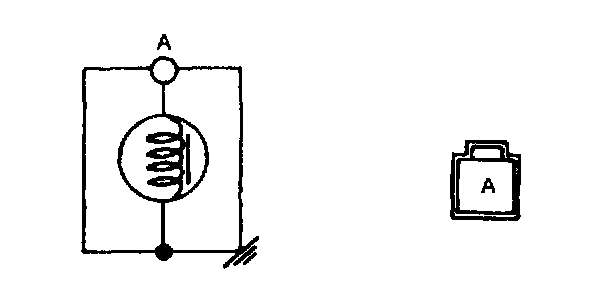

2. Connect battery positive voltage to terminal A of magnetic clutch and ground to the A/C compressor body.
3. Verify that the magnetic clutch operates.
If not as specified,go to next step.
4. Verify that magnetic clutch clearance
- If not as specified, adjust the magnetic clutch clearance
- If the magnetic clutch clearance is okay, replace the stator.
