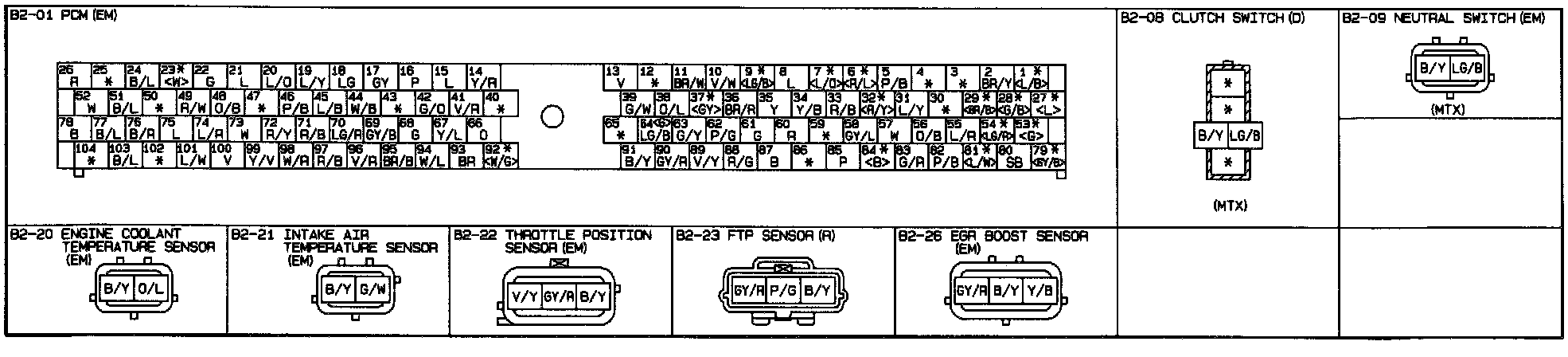

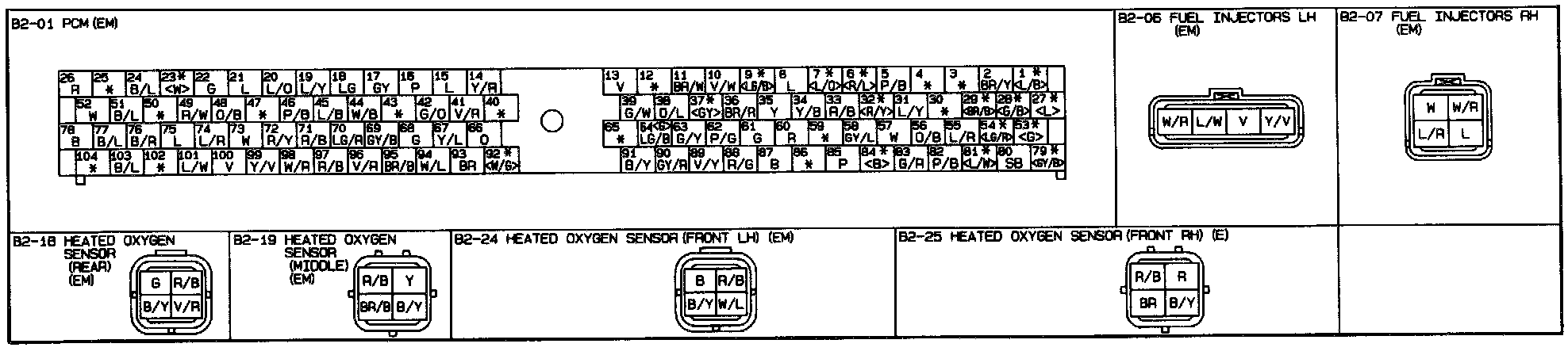

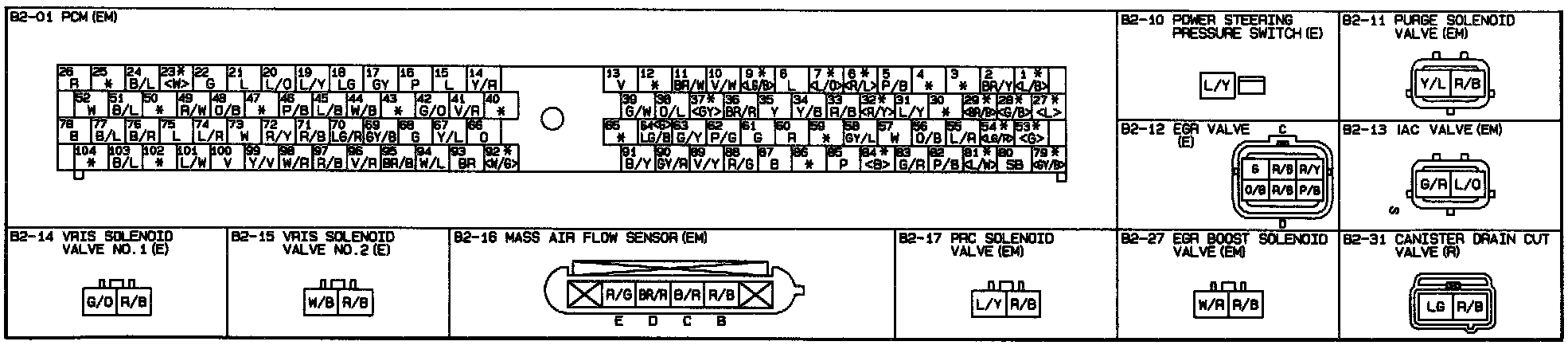

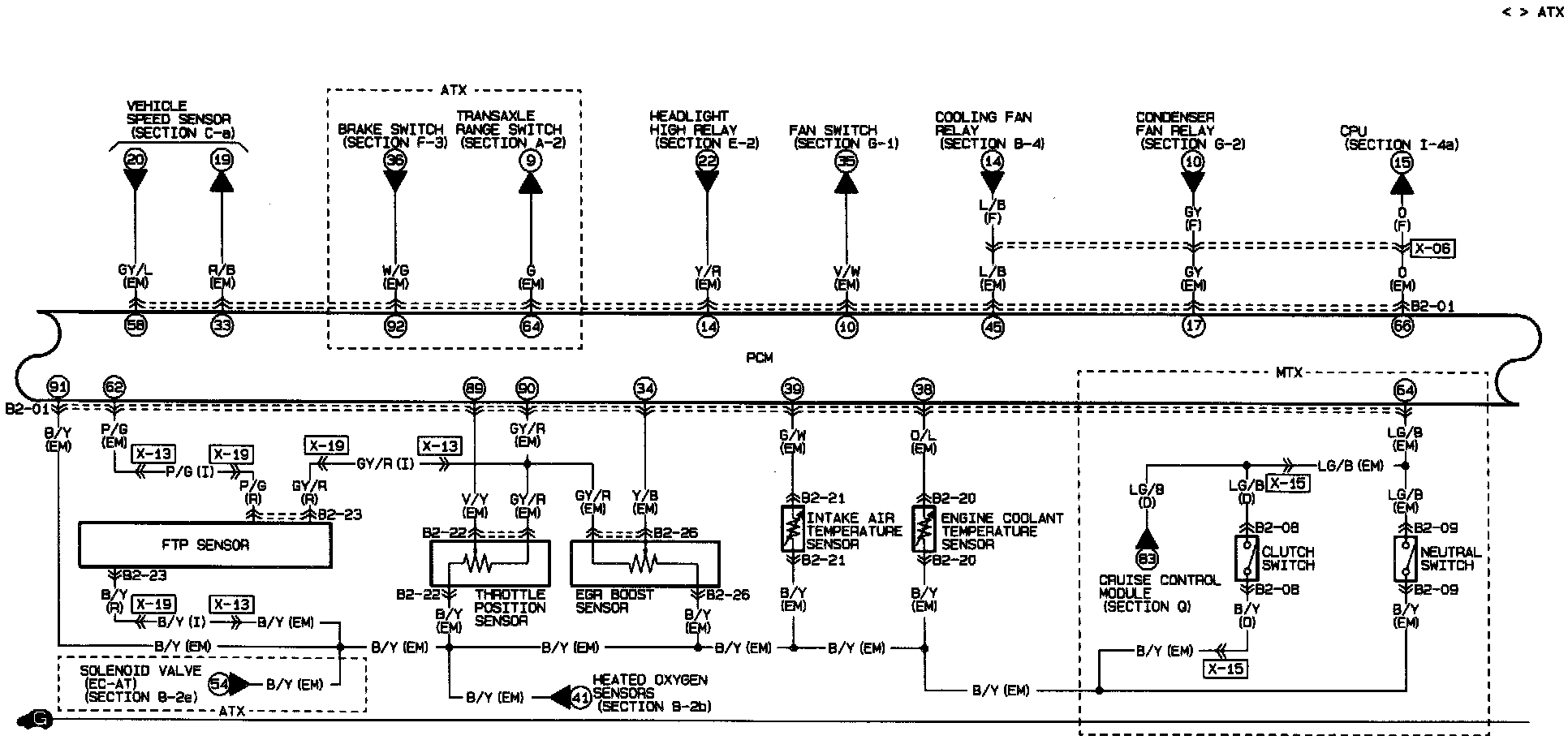

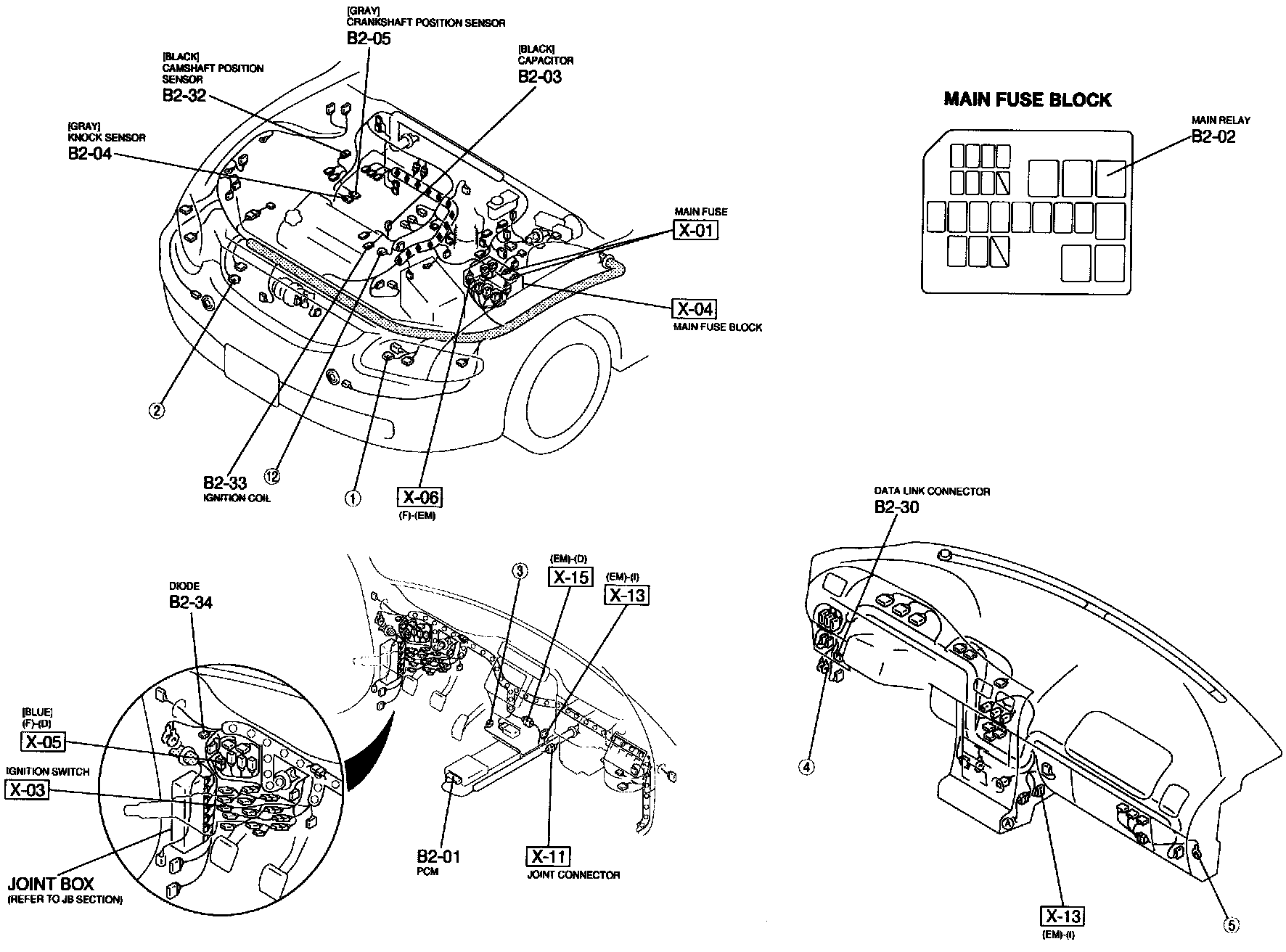

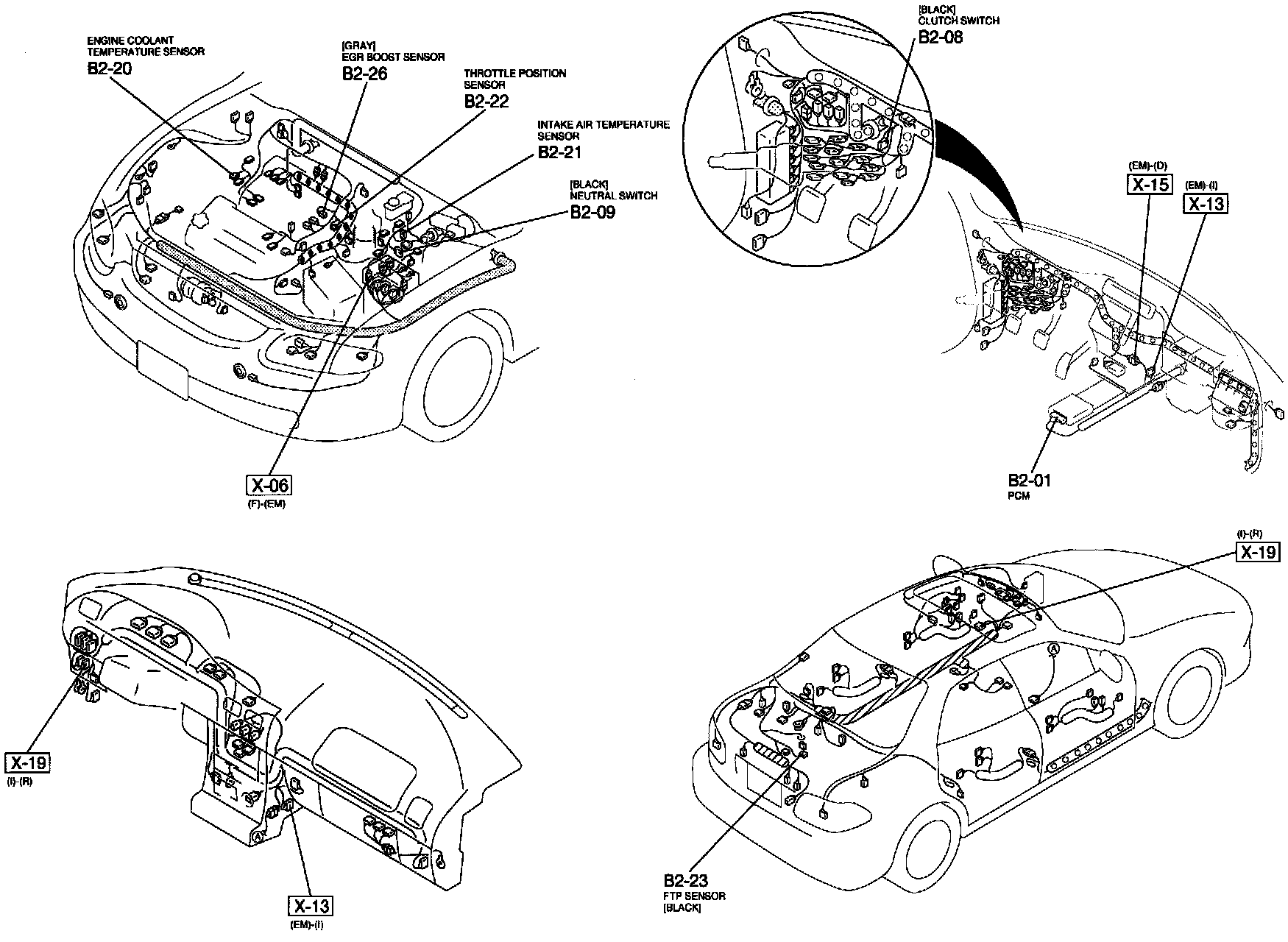

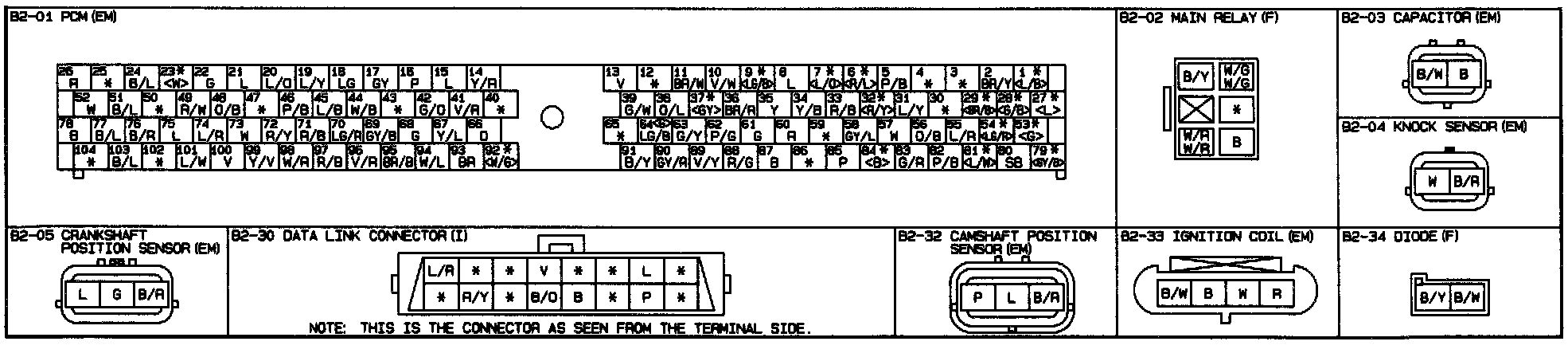

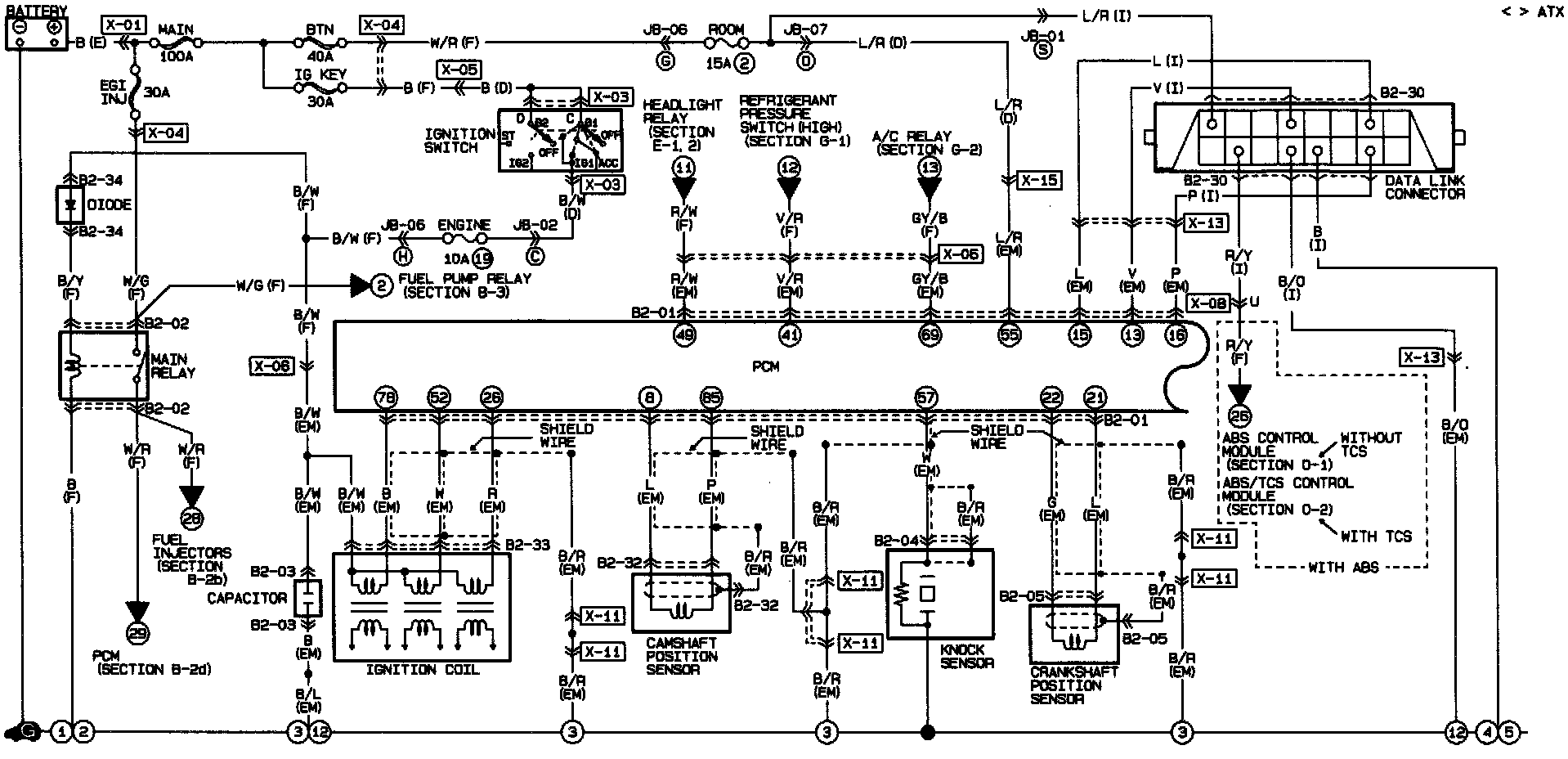

EC-AT Control System

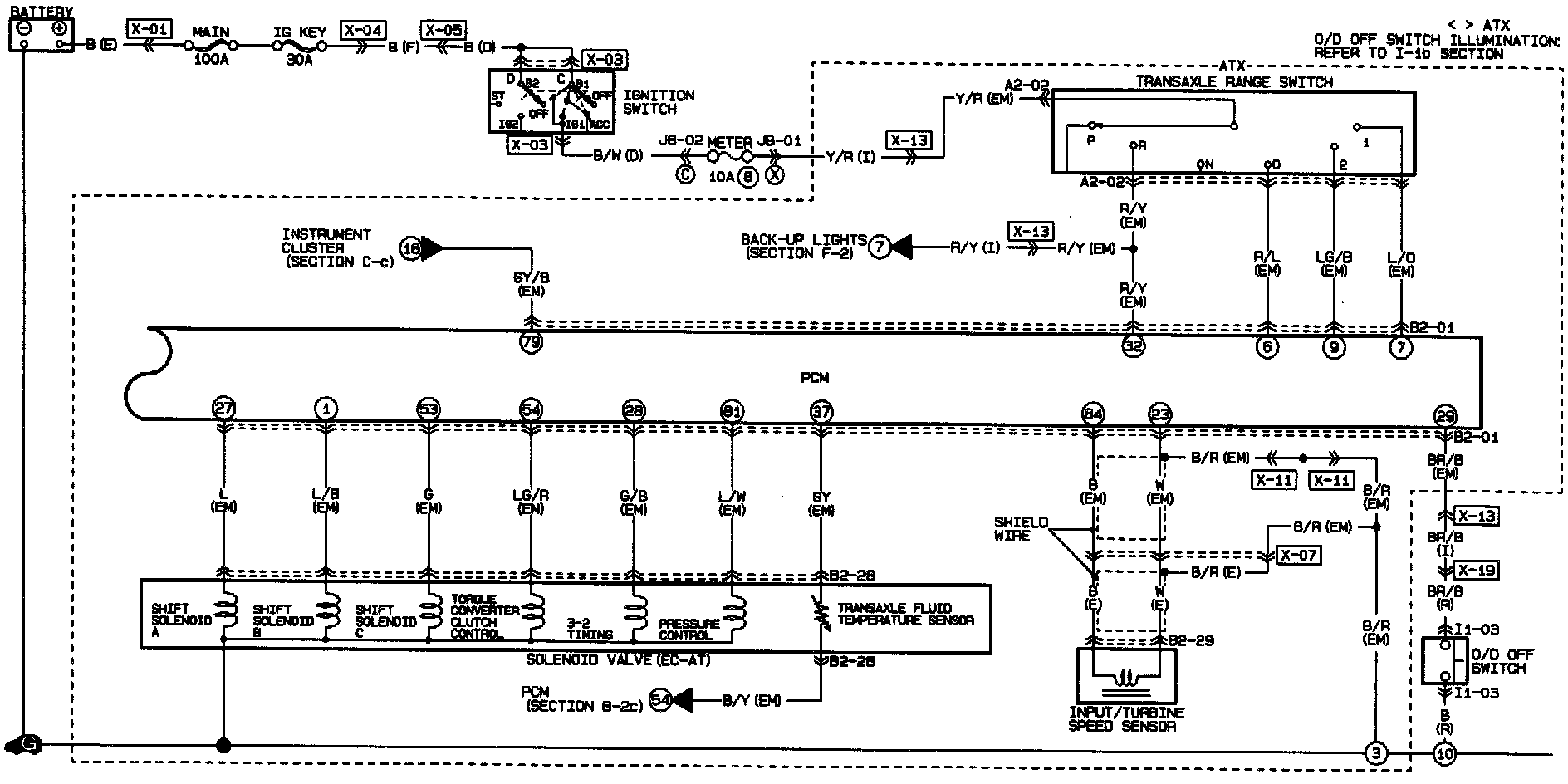

B-2A:





B-2A:





B-2A:

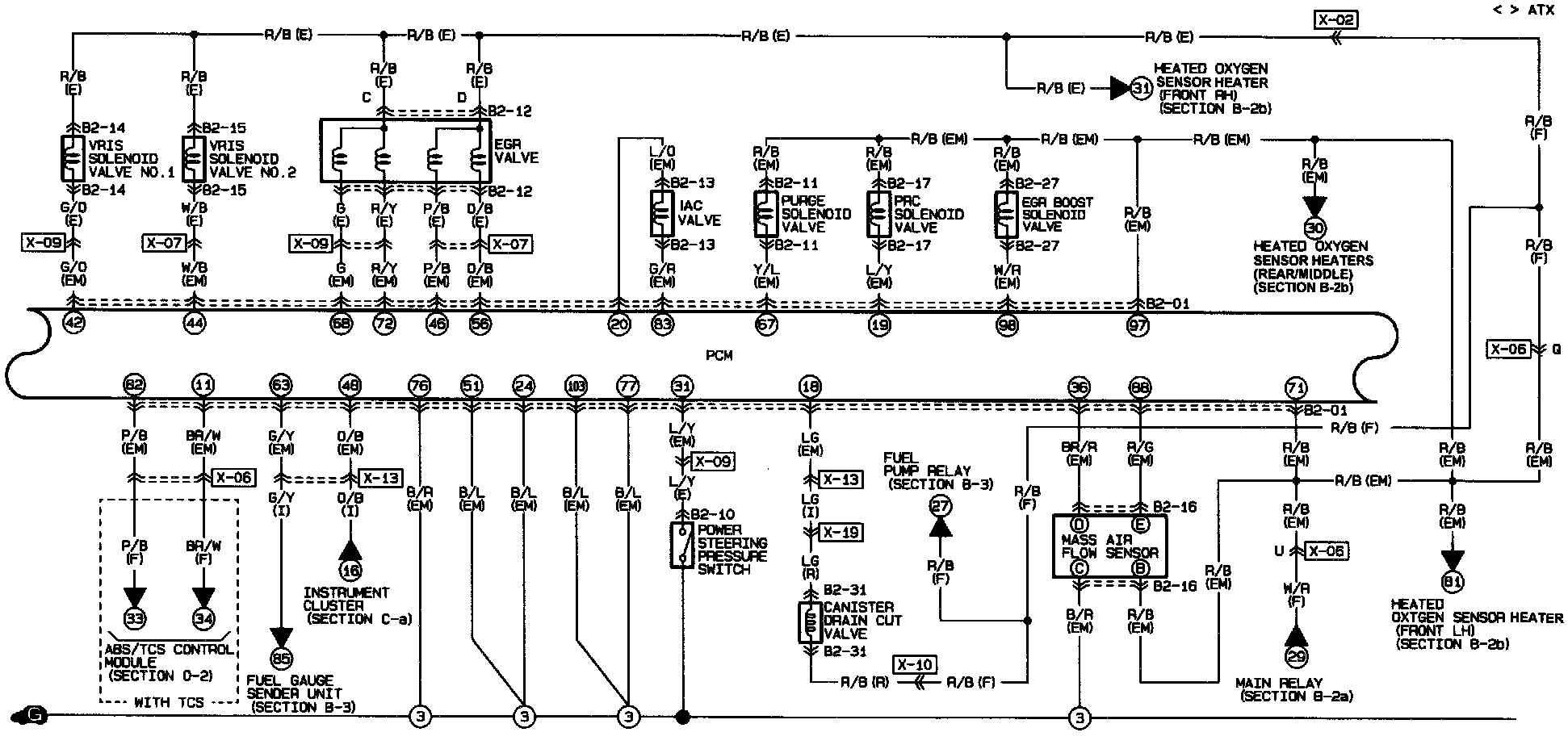

B-2B:





B-2B:





B-2B:

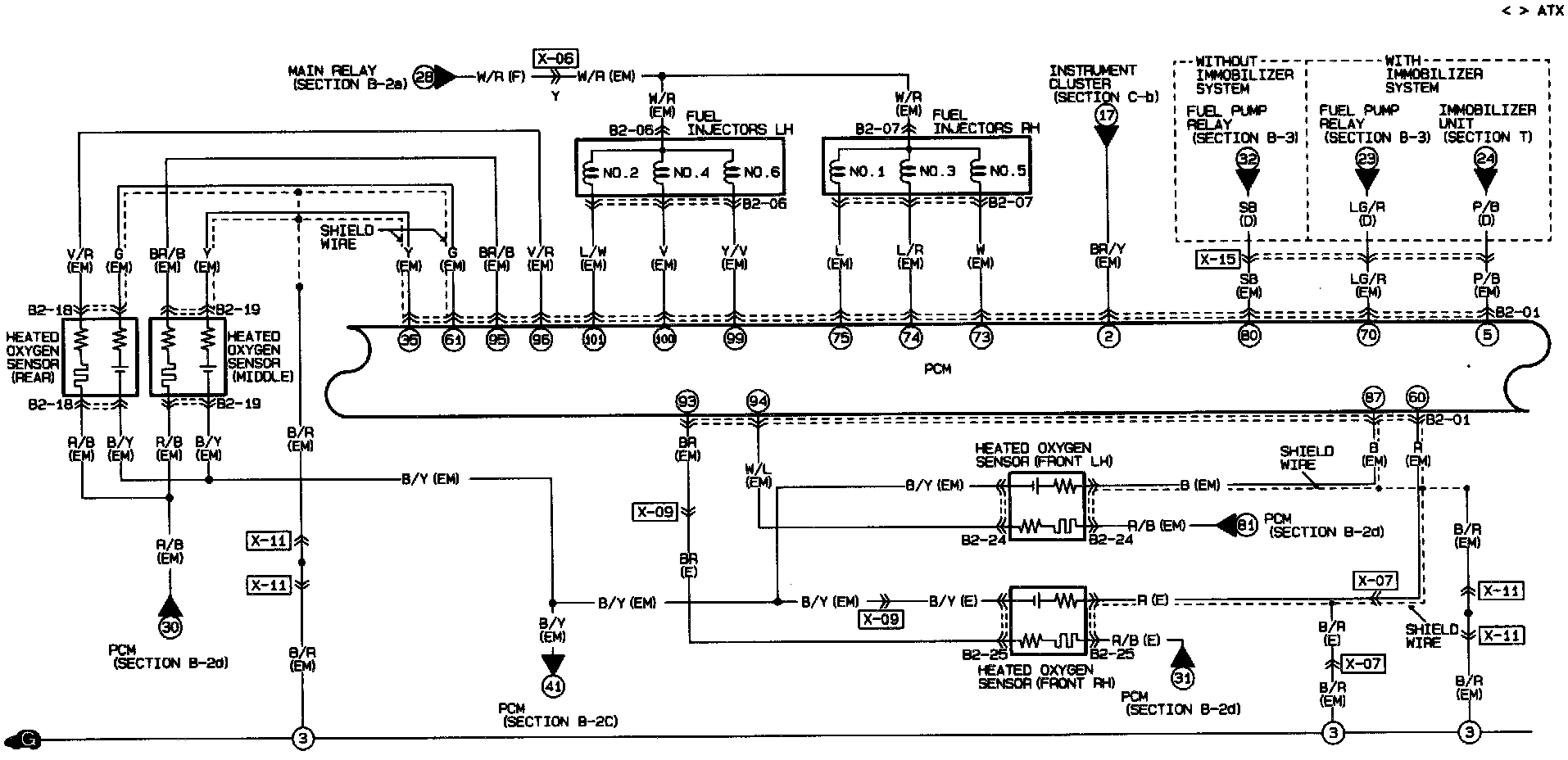

B-2C:





B-2C:





B-2C:

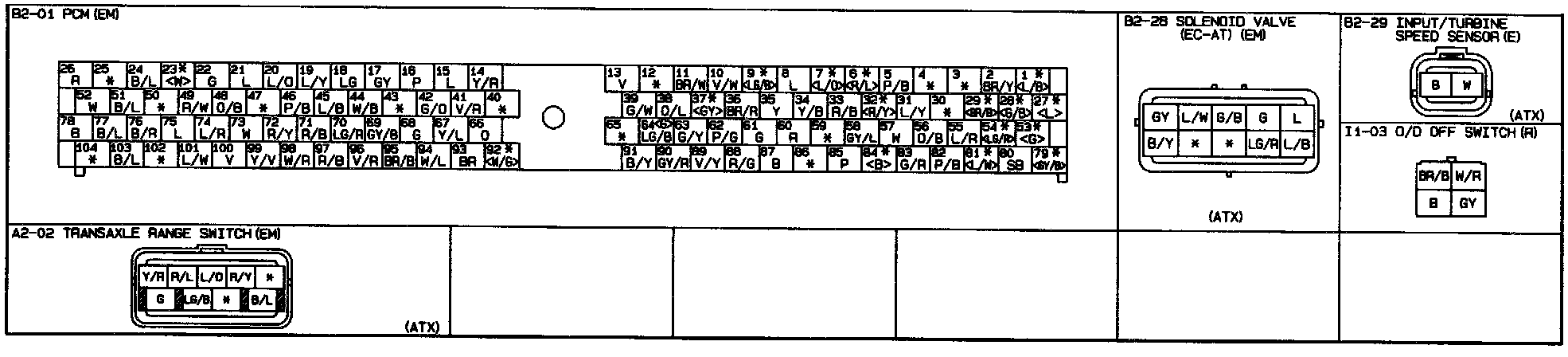

B-2D:





B-2D:





B-2D:

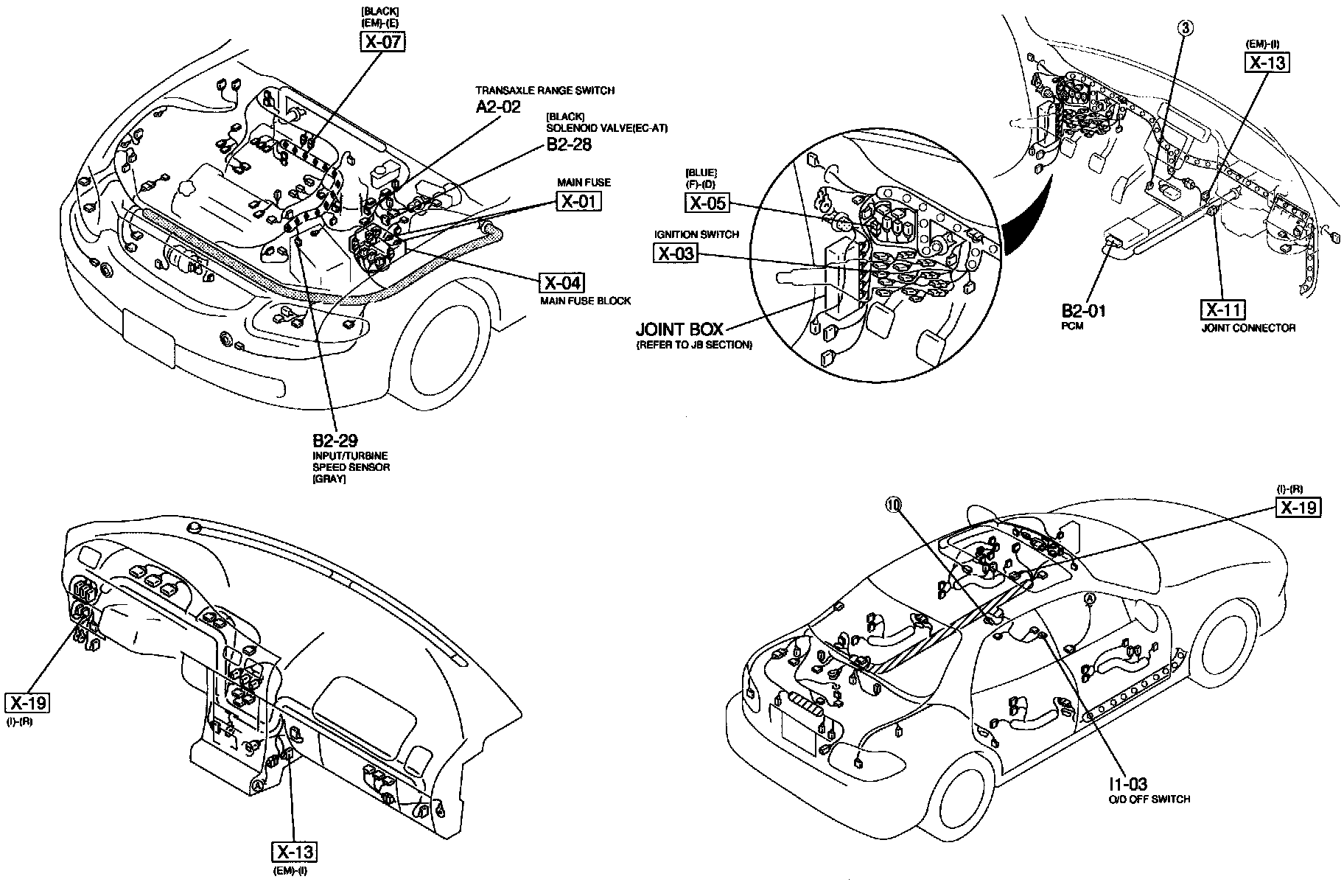

B-2E:





B-2E:





B-2E:
