Front

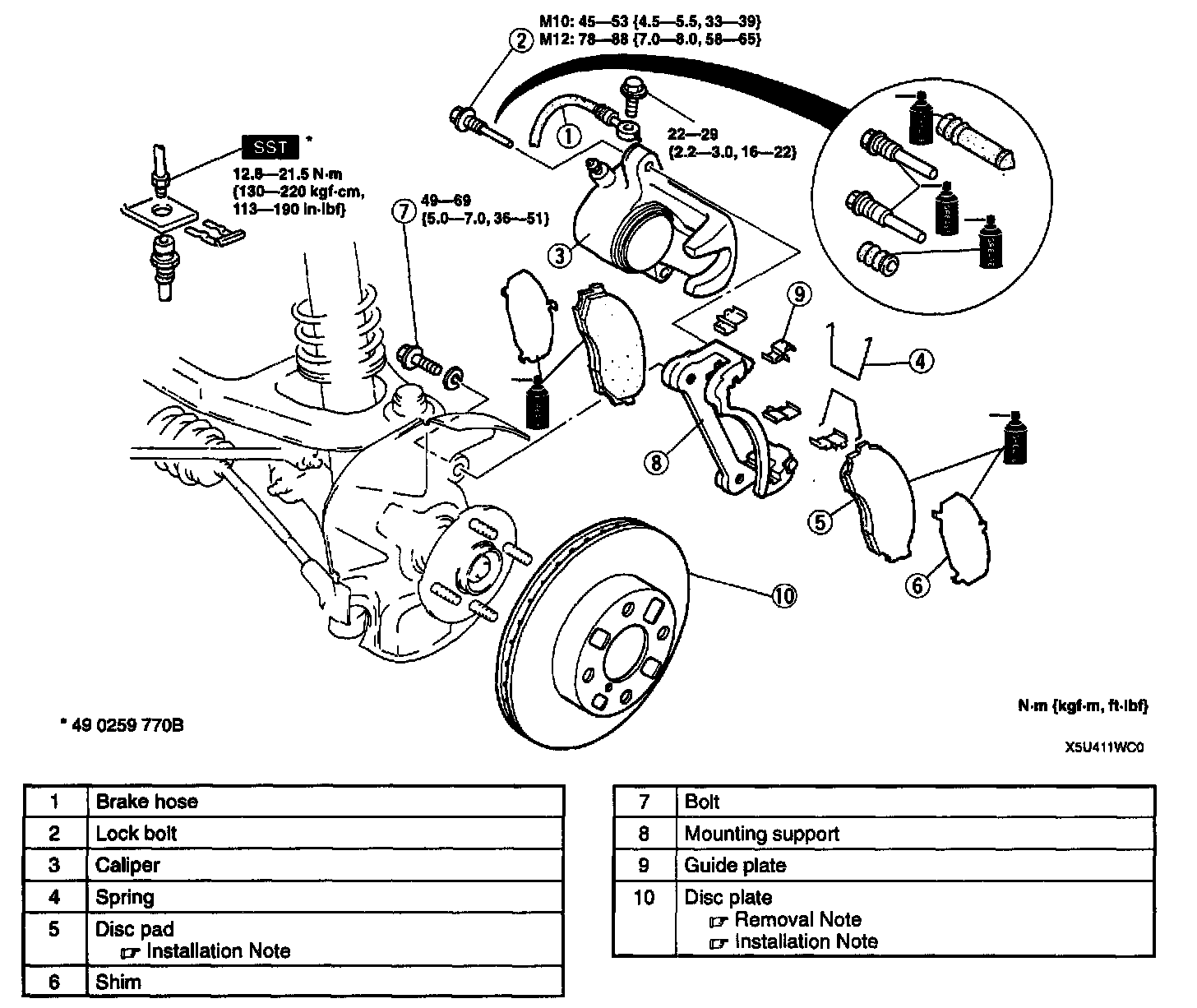

FRONT BRAKE (DISC) REMOVAL/INSTALLATION

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

Disc Plate Removal Note





^ Mark the wheel hub bolt and disc plate before removal for reference during installation.

Disc Plate Installation Note
1. Remove any rust or grime on the contact face of the disc plate and wheel hub.
2. Install the disc plate and align the marks made before removal.


Disc Pad Installation Note

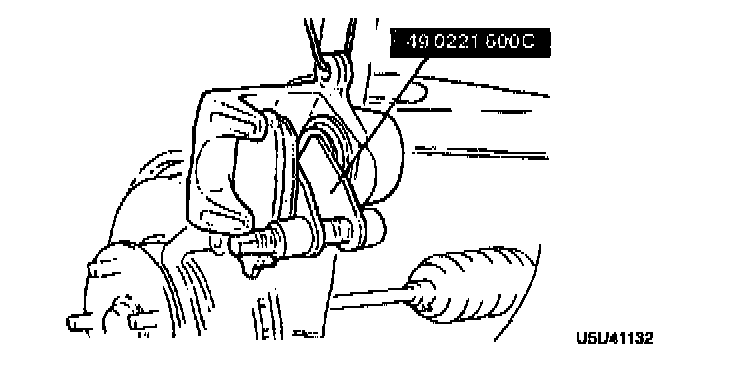

1. Push the piston inward by using the Special Service Tool (SST)
2. Install the new pads in the mounting support.
