Home >> Mazda >> 1999 >> MX-5 Miata L4-1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram

System Diagram

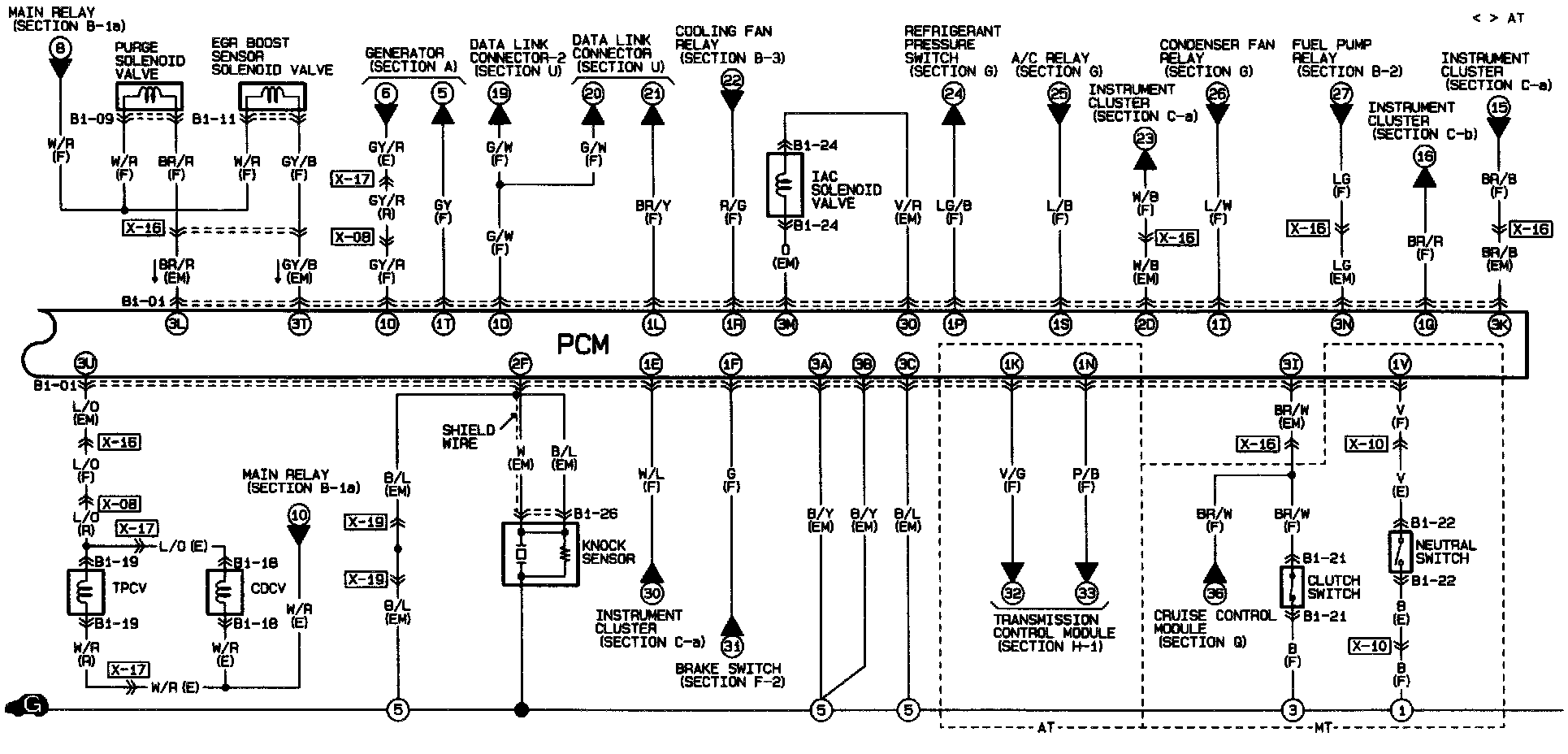

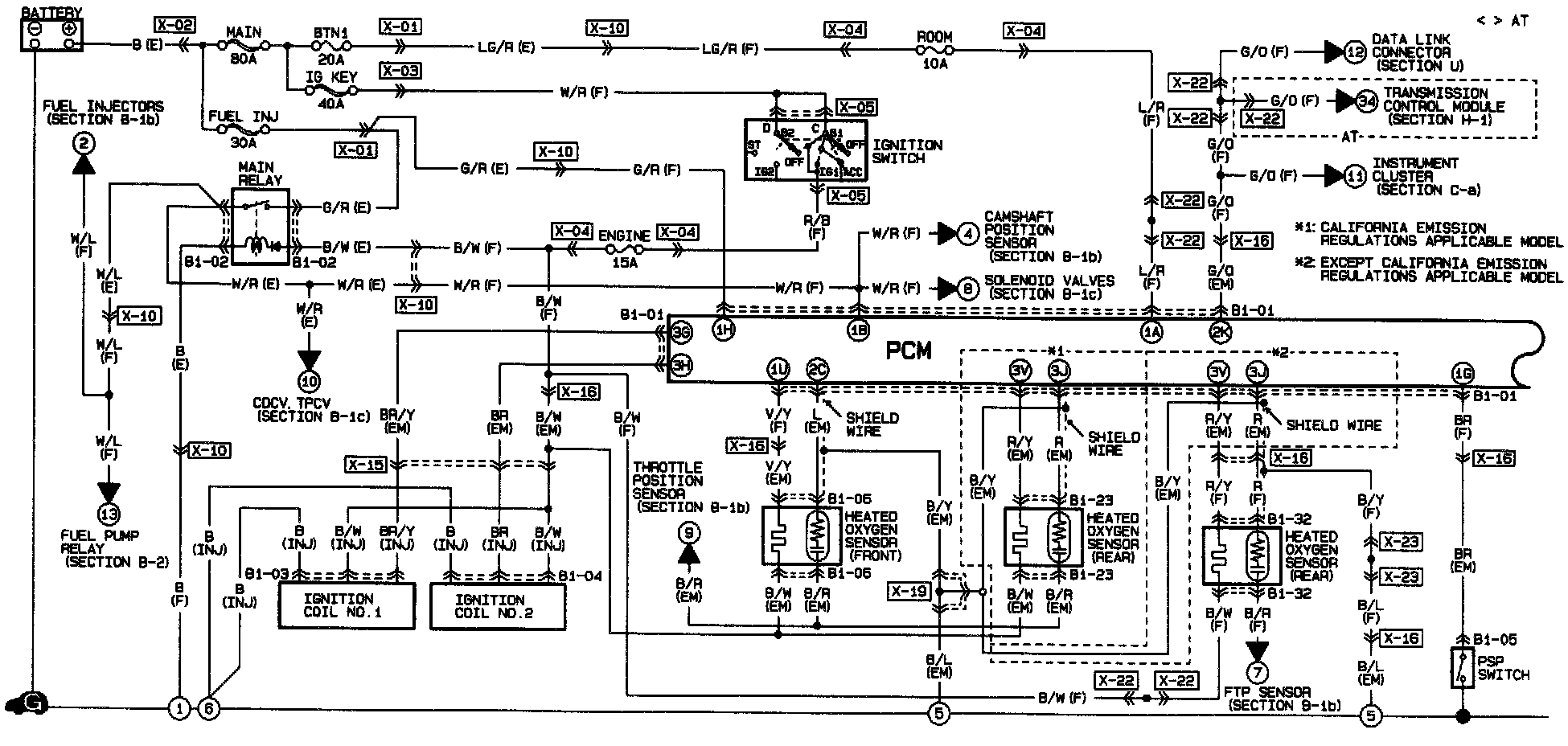

B-1A:

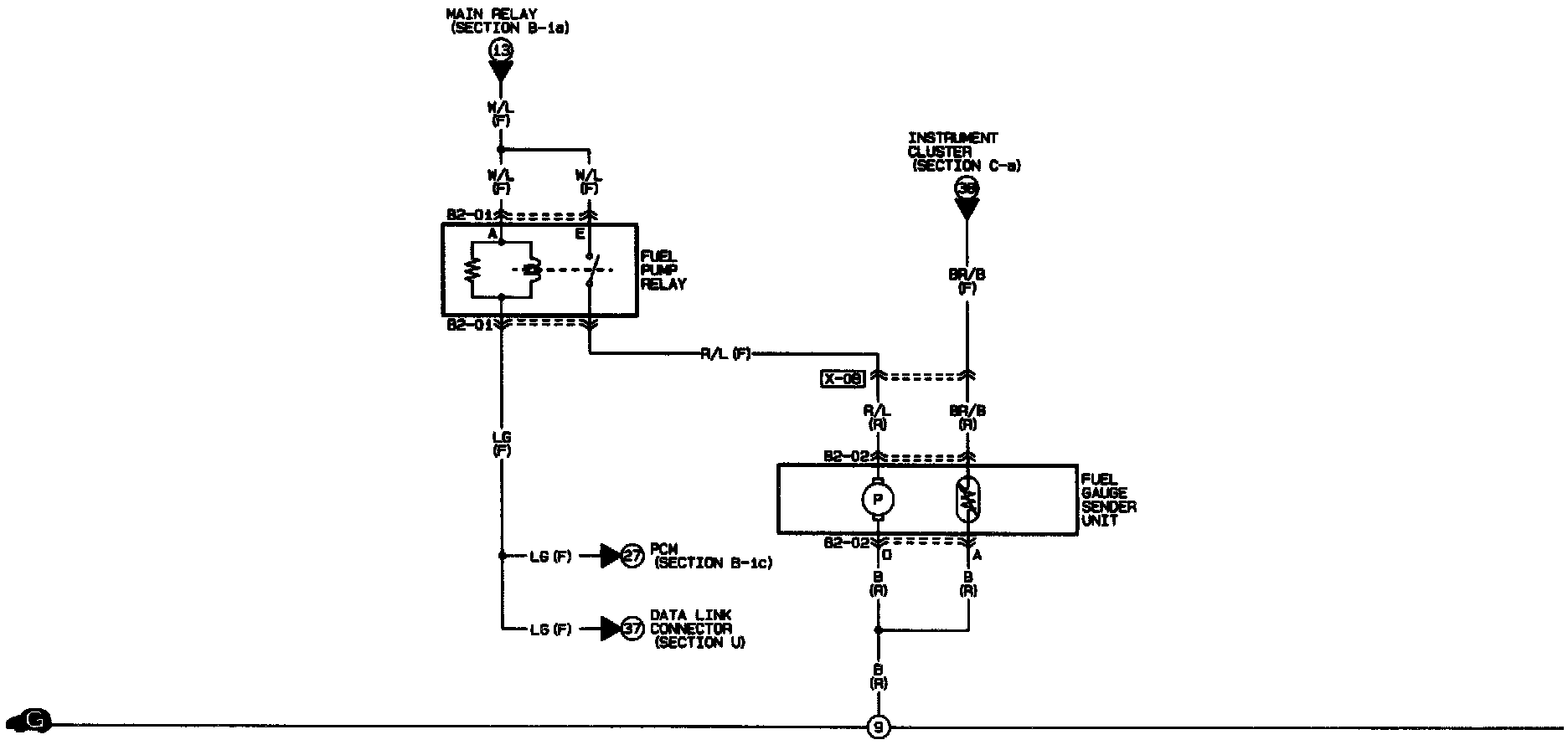

B-1B:



B-1C:



B-2:
