Compressor Clutch: Service and Repair

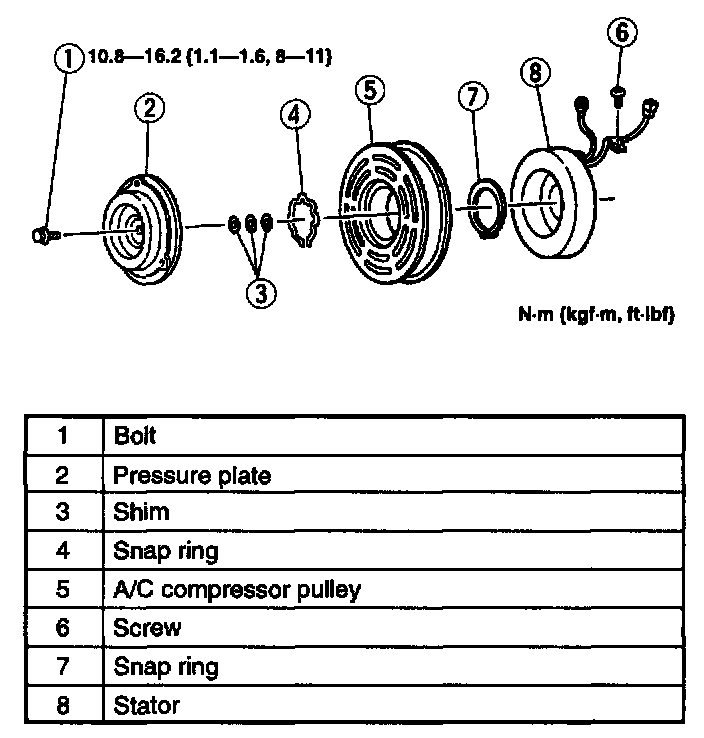

MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY
1. Remove the A/C compressor.




2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.
4. Adjust the magnetic clutch clearance.




Bolt Disassembly Note

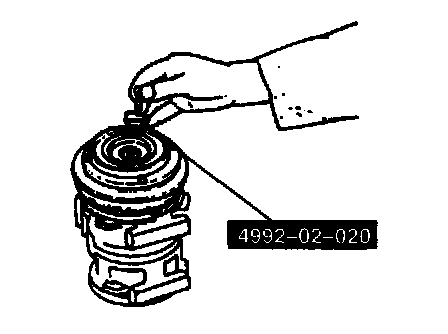

- Remove the bolt by using the SST.




Pressure Plate Disassembly Note

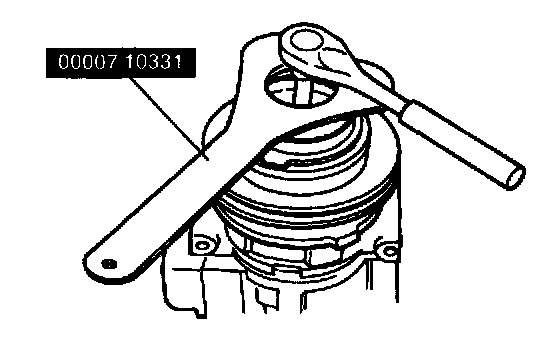

- Remove the pressure plate by using the SST.
