Refrigerant Pressure Sensor / Switch: Testing and Inspection

REFRIGERANT PRESSURE SWITCH INSPECTION

1. Install the manifold gauge set.
2. Disconnect the refrigerant pressure switch connector.
3. Verify the high-pressure side of the manifold gauge.

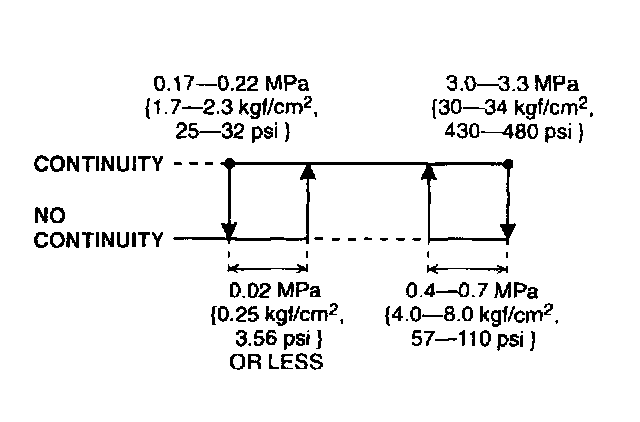

4. Check for continuity between the terminals of refrigerant pressure switch.

KL = 2.5L:

5. If not as specified, replace the refrigerant pressure switch.
