EGR Boost Control Solenoid: Testing and Inspection

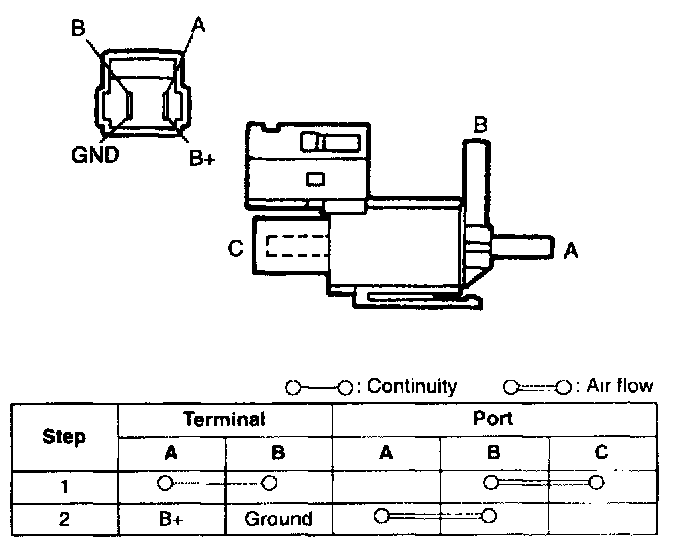

1. Inspect air flow between ports of the solenoid valve.
2. If not as specified, replace the EGR boost sensor solenoid valve.
