With 2.3L Engine

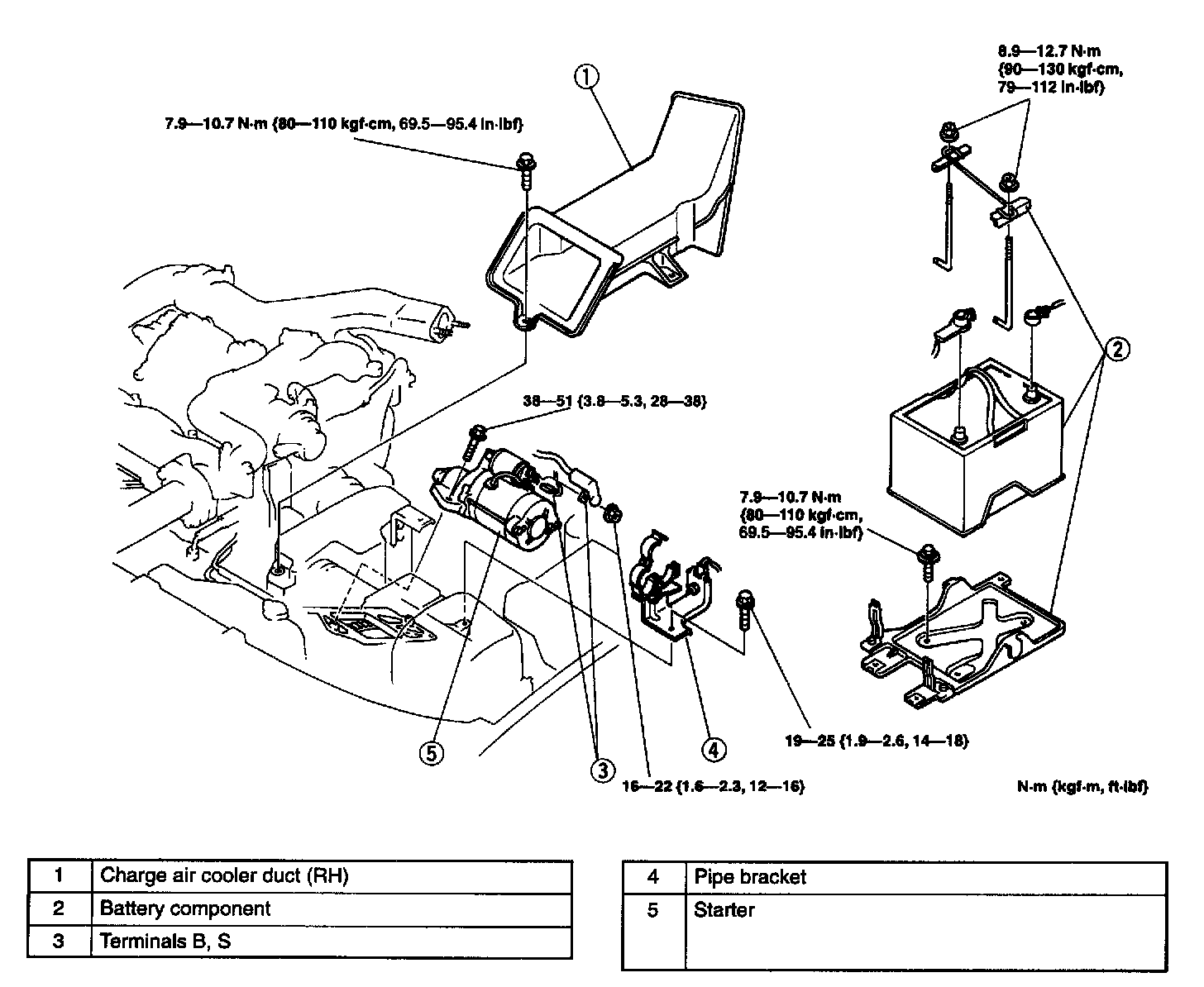

STARTER REMOVAL/INSTALLATIONKJ Engine Code = 2.3L:
1. Disconnect the negative battery cable.
2. Remove the charge air cooler.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
1. Disconnect the negative battery cable.
2. Remove the charge air cooler.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
