Cruise Control Servo Cable: Adjustments

ACTUATOR CABLE ADJUSTMENT

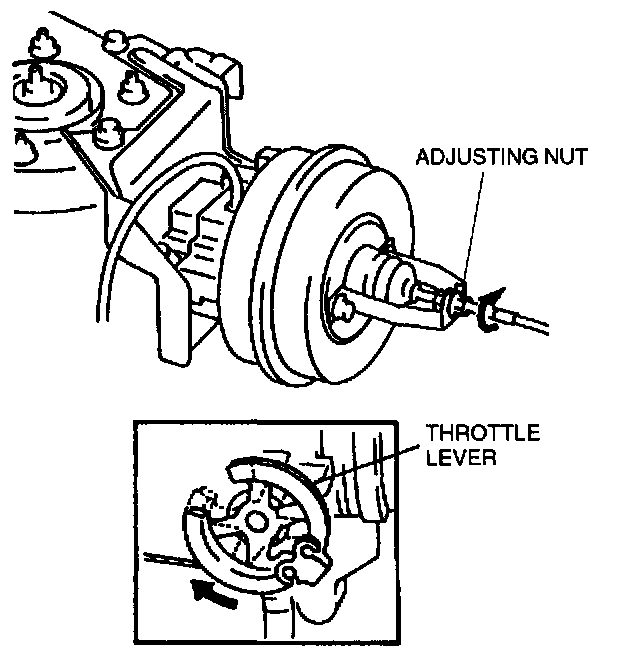

1. Turn the adjusting nut as shown in the figure until the throttle lever starts moving to eliminate the actuator cable play.




2. Turn the adjusting nut as shown in the figure to obtain approximately 3 mm (0.12 in) tree play.

NOTE: Turning the adjusting nut twice makes 3 mm (0.12 in) tree play.

3. Tighten the inside nut.
