Compressor Clutch Relay: Testing and Inspection

A/C RELAY INSPECTION

1. Remove the A/C relay.

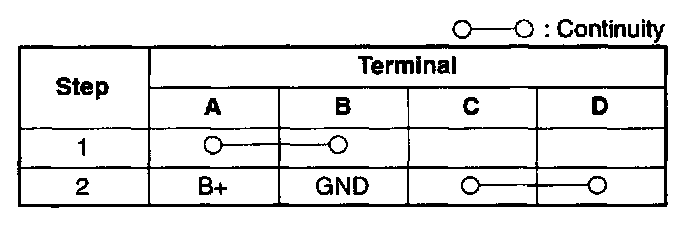

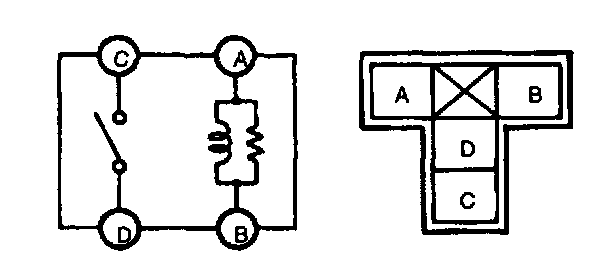

2. Inspect for continuity between the A/C relay terminals using an ohmmeter.
If not as specified, replace the A/C relay.
