Control System Device and Relationship Chart
Control System Device and Relationship Chart

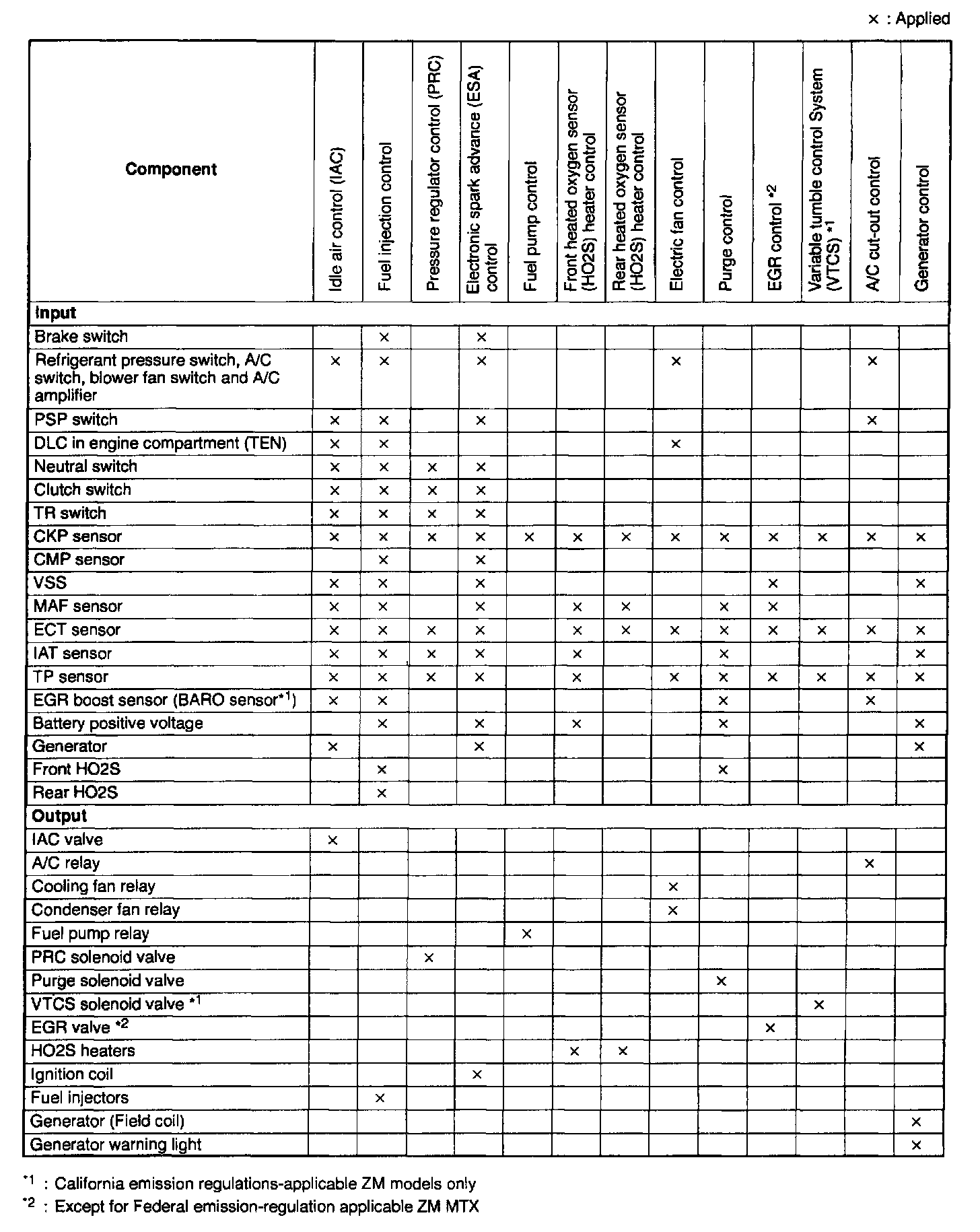

CONTROL SYSTEM DEVICE AND CONTROL RELATIONSHIP CHART
