Wiper Arm: Service and Repair

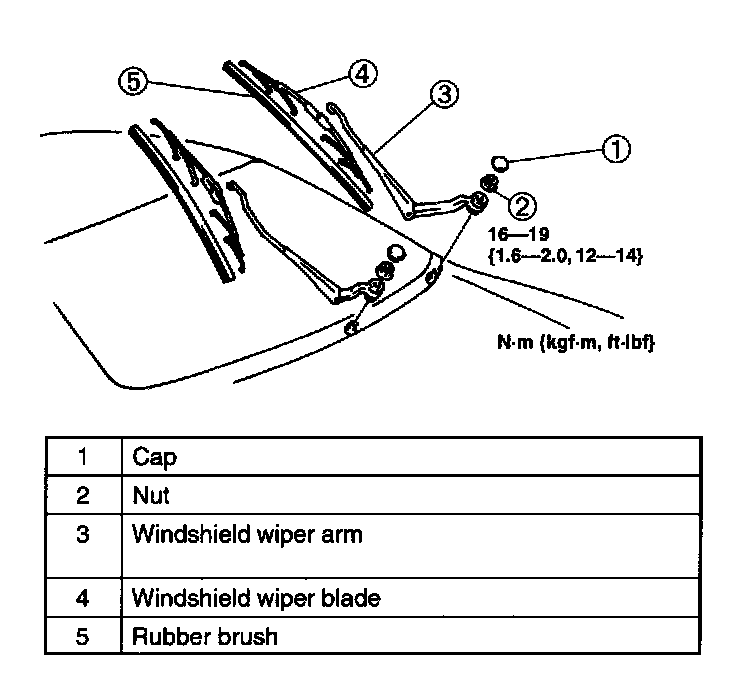

WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION




1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Adjust the windshield wiper arm and blade.

Windshield Wiper Arm Installation Note

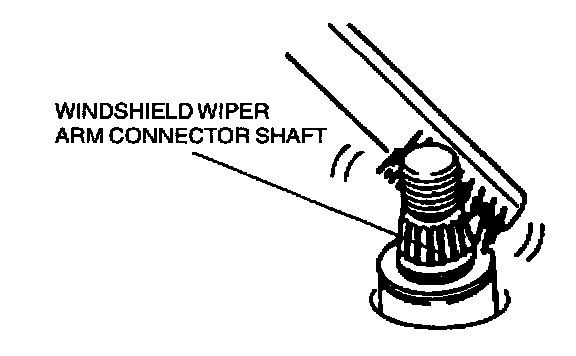

- Clean the windshield wiper arm connector shafts using a wire brush before installing the windshield wiper arms.
