Electronic Brake Control Module: Testing and Inspection

ABS CONTROL MODULE INSPECTION
1. Disconnect the negative battery cable.

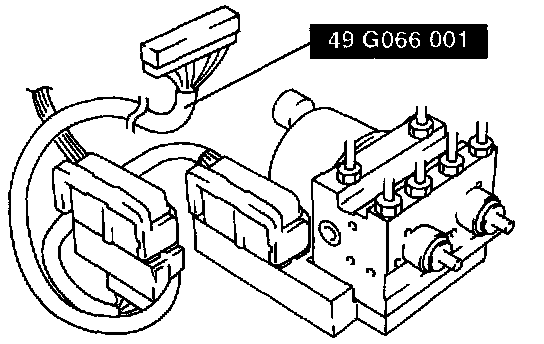

2. Connect the Special Service Tool (SST) between the ABS Control Module (CM) and harness connector with the ignition switch off.
3. Attach the tester leads to the SST and inspect voltage referring the table.

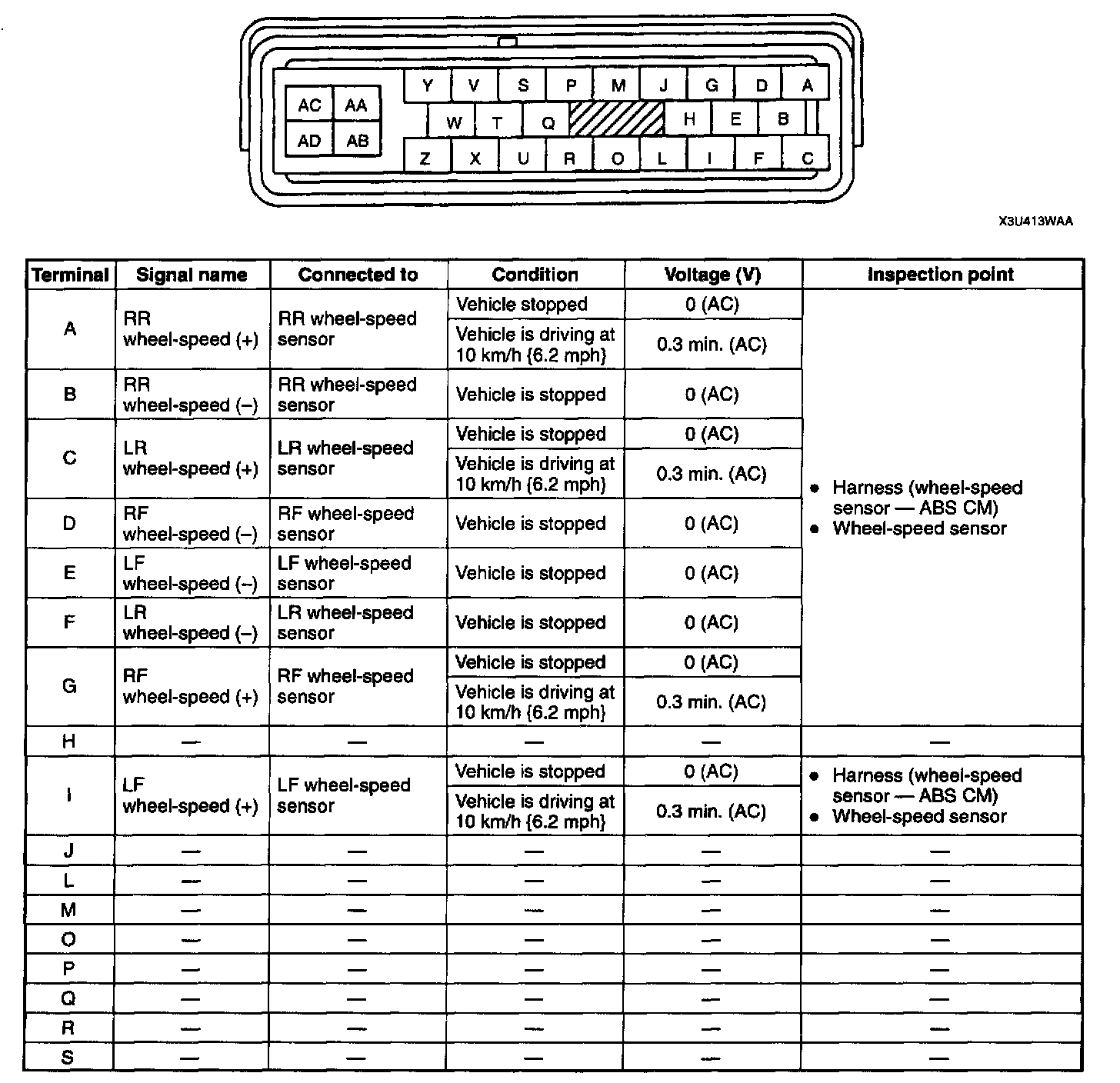

Part 1 Of 2:

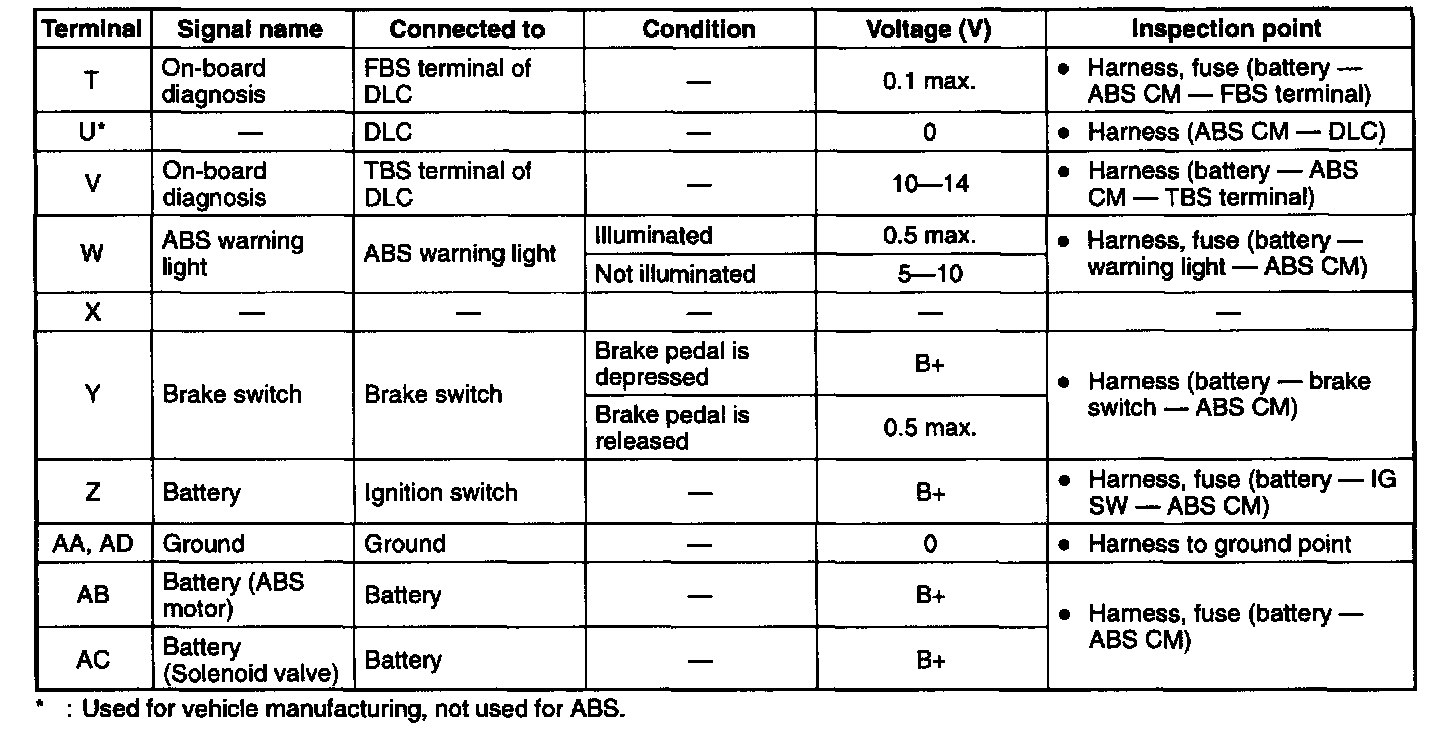

Part 2 Of 2:

Terminal Voltage Chart (Reference Value)
(Engine is idling, and connector is connected unless indicated otherwise)
