Alternator: Service and Repair

GENERATOR REMOVAL/INSTALLATION

WARNING: When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery before performing the following operation.

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.

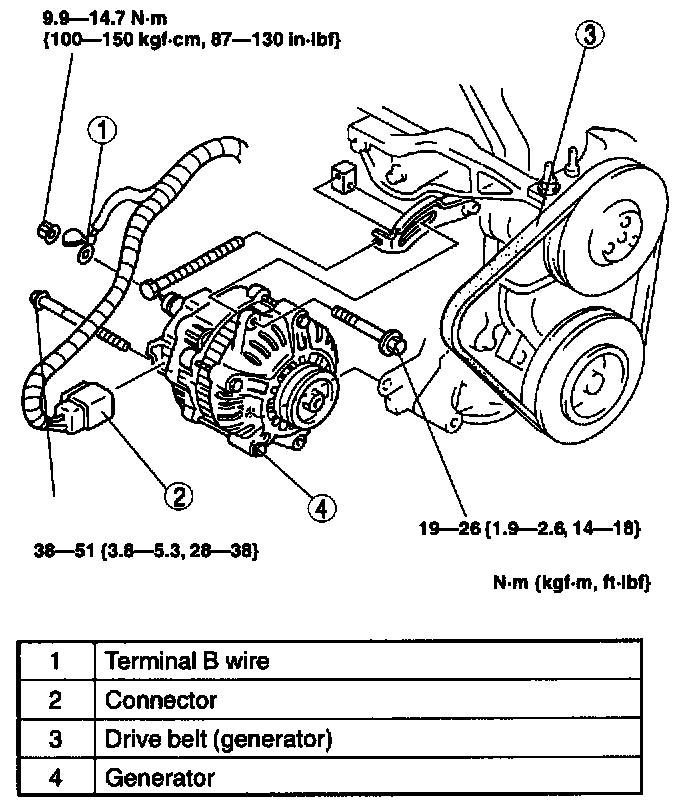

WITH (ZM) ENGINE CODE (1.6L)

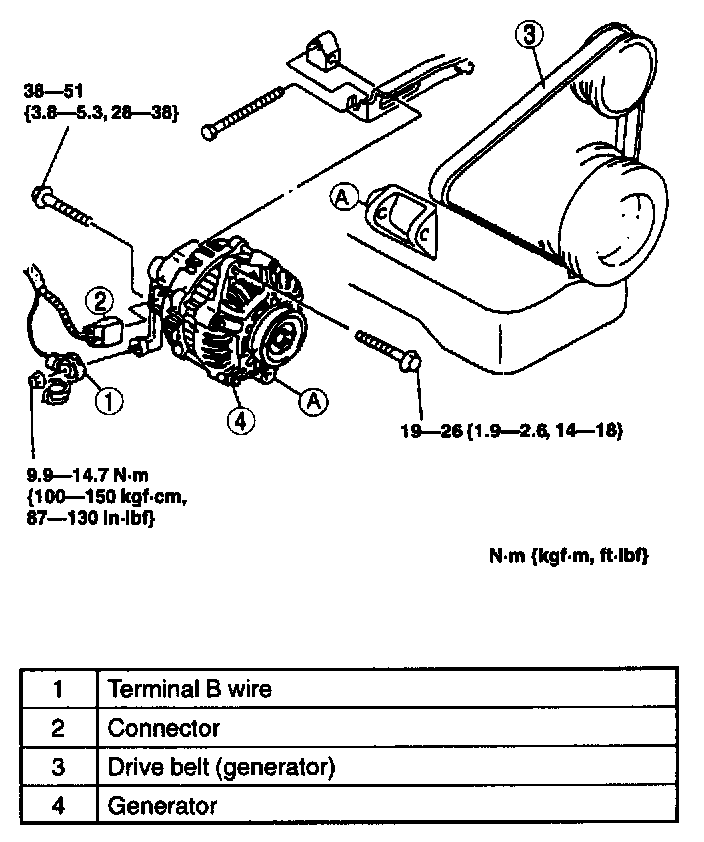

WITH (FP) ENGINE CODE (1.8L)

3. Install in the reverse order of removal.
4. Inspect the drive belt deflection/tension.
