A/T Range Sensor - MIL and OD Light ON/DTC P0705 Set

Bulletin No. 002/99
Issued 04/08/99
Revised

Category
K (05)

Applicable Model/s
1999 Protege

Subject
MIL AND CD OFF LIGHTS "ON" DTC P0705 WITH
POSSIBLE ERRATIC SHIFTING

APPLICABLE MODEL(S)/VINS

All 1999 Protege with VINs lower than JM1 BJ22** XO 130214.

DESCRIPTION

The MIL and CD OFF light are "ON" with Diagnostic Trouble Code (DTC) P0705. In some cases the customer may experience erratic shifting and/or no shifting out of third gear. This can be caused by moisture entering the Transmission Range (TR) Switch resulting in corrosion of the terminals during the manufacturing process. Customers having this concern should have their vehicle repaired using the following procedure.

REPAIR PROCEDURE

1. Verify customer concern.

2. Retrieve FREEZE FRAME DATA and record on repair order.

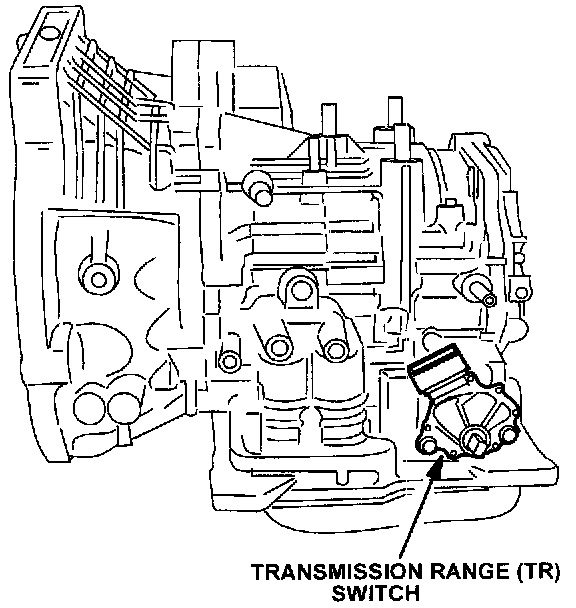

3. Check TR Switch terminals for moisture and/or corrosion.

^ If only moisture is found, blow terminals dry with compressed air then go to STEP 4.

^ If corrosion is found on TR Switch terminals follow workshop manual instructions and replace the TR Switch.







Caution
Follow Workshop Manual instructions for TR Switch replacement or internal damage to transmission will occur.

^ If no abnormal condition can be seen at TR Switch connector terminals, perform diagnostic procedures for DTC P0705 according to section 05-01 of the Workshop Manual.

4. Apply dielectric grease to terminals then reconnect connector.

5. Clear stored code(s).

6. Verify the repair.

WARRANTY INFORMATION

Note
^ This information applies to verified customer complaints on vehicles covered under normal warranty. Refer to the SRT microfiche for warranty term information.

Warranty Type

Symptom Code 64 or 6X

Damage Code 93

Part Number Main Cause FN01 21 444 or FN11 21 444

Quantity 0 or 1

Operation Number/Labor Hours XX091XRX (includes cost of grease) / O.5 (TRS is not replaced)
KO407XRX / 0.4 (TRS is replaced)
KOOO2XDX / 0.3 max. (diagnosis)
