Parking Brake System: Service and Repair

PARKING BRAKE REMOVAL/INSTALLATION
1. Remove the rear console.
2. Remove the exhaust pipe insulator bolts.

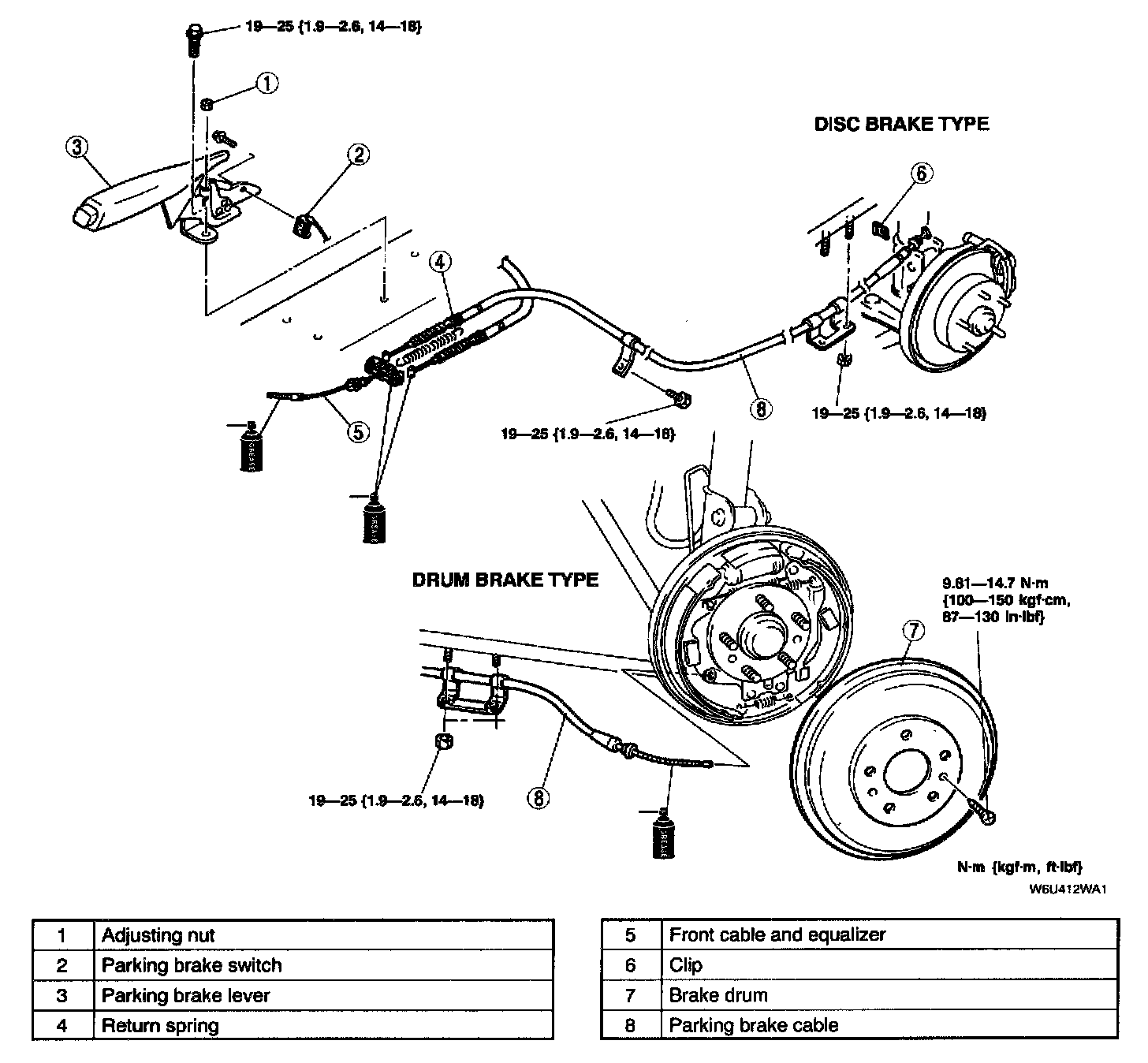

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.





5. Adjust the parking brake stroke.
