Air Register: Description and Operation

Swing Louver Description
The swing louver is installed on the center vent and operates the right and left air distribution fins to send airflow evenly.




Structure
The swing louver consists of a swing switch, swing louver motor, a bar, two sliders, and two louvers.




Mechanical operation
1. When the swing motor rotates, the protrusion on the motor plate rotates.
2. The protrusion on the motor plate moves within a groove on the bar.
3. The fins of the louver move right and left because the bar, slider and lever are synchronized

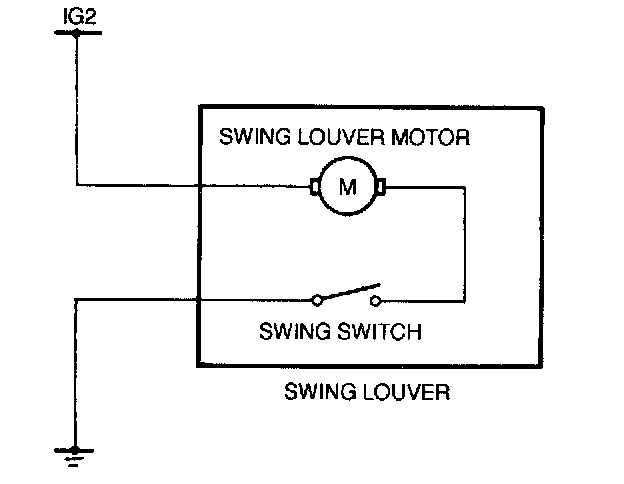

Electric operation
The current flows to the swing louver motor when the switch is turned on and the motor operates.
