Windshield Washer Motor: Testing and Inspection

1. Partially peel off the right side mud guard.
2. Remove the windshield washer tank.

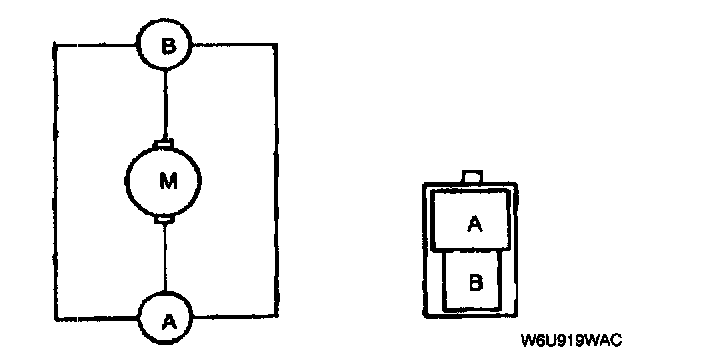

3. Connect battery positive voltage to terminal B and ground to terminal A of the motor.




4. Verify that the windshield washer motor operates.
- If the motor does not operate, replace the windshield washer motor.
