Brake Proportioning/Combination Valve: Service and Repair

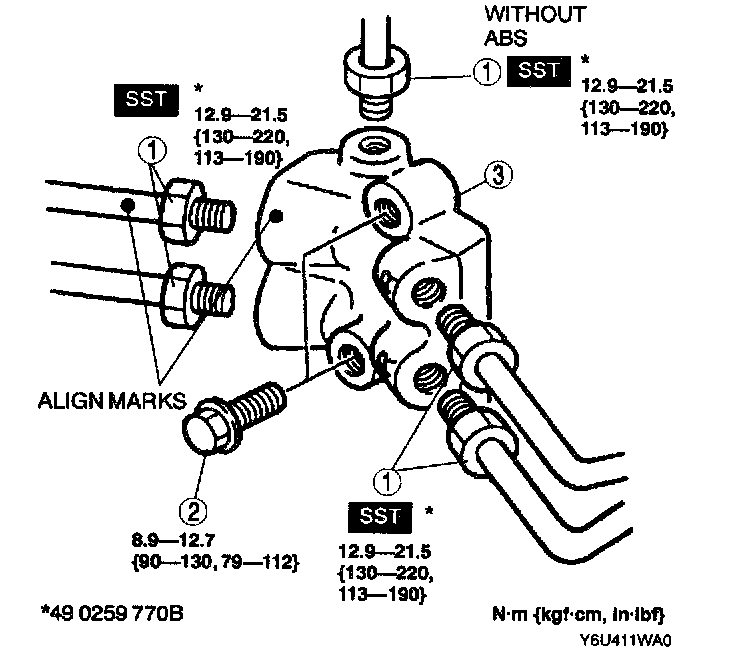

DUAL PROPORTIONING VALVE REPLACEMENT

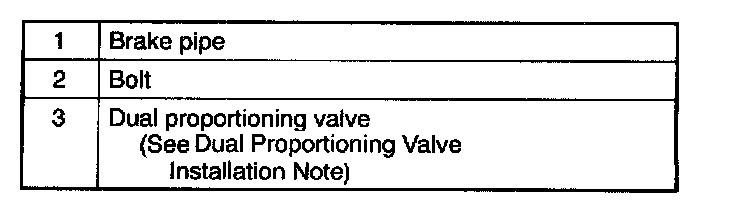

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

DUAL PROPORTIONING VALVE INSTALLATION NOTE

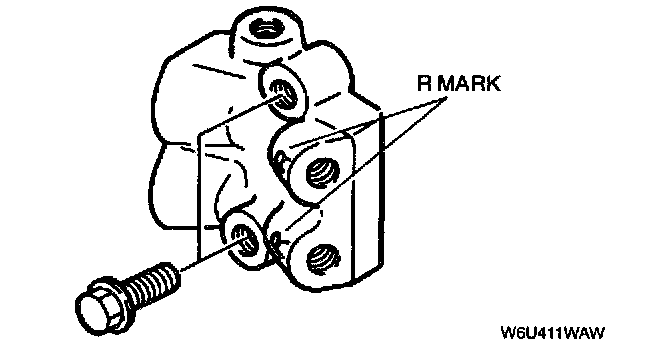

^ Install the dual proportioning valve so that the R mark faces right side of the vehicle.
